PWM Digital Servo - Datasheet

Find wiring instructions, PWM timing requirements, RC receiver setup, microcontroller examples and configuration guides for Fashion Star digital servos. Learn how to adjust supported parameters such as travel range, direction and startup behavior, and understand stall and operating protection functions.

Other Protocol servo Datasheets UART bus servo RS485 bus servo CAN Bus bus servo Waterproof Servo

Coreless 270° | 45 kg | Stainless-Steel Gears

Dimensions40 × 40 × 20 mm Weight65 g

HP8-A46 RP8-A46

Coreless 180° | 45 kg | Stainless-Steel Gears

Dimensions40 × 40 × 20 mm Weight65 g

HP8-A45 RP8-A45

---

Cored 270° | 35 kg | Aluminum Gears

Dimensions40 × 40 × 20 mm Weight52 g

HA8-P36 RA8-P36

Cored 180° | 35 kg | Aluminum Gears

Dimensions40 × 40 × 20 mm Weight52 g

HA8-P35 RA8-P35

---

Cored 270° | 25 kg | Copper Gears

Dimensions40 × 40 × 20 mm Weight62 g

HA8-P26 RA8-P26

Cored 180° | 25 kg | Copper Gears

Dimensions40 × 40 × 20 mm Weight62 g

HA8-P25 RA8-P25

---

Brushless 180° | 100 kg | Stainless-Steel Gears | All-Metal Housing | IP65 Waterproof

Dimensions63 × 34 × 47 mm Weight230 g

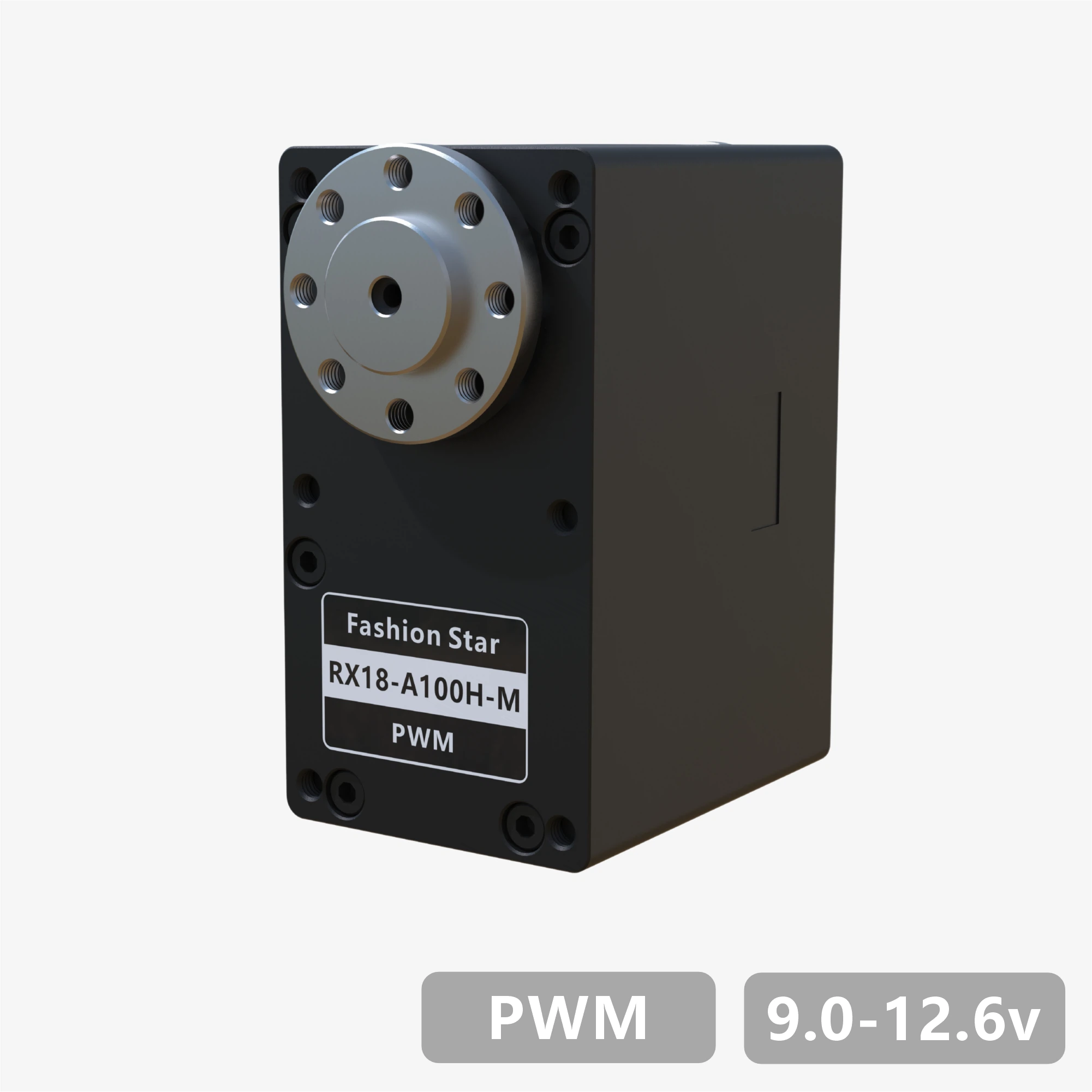

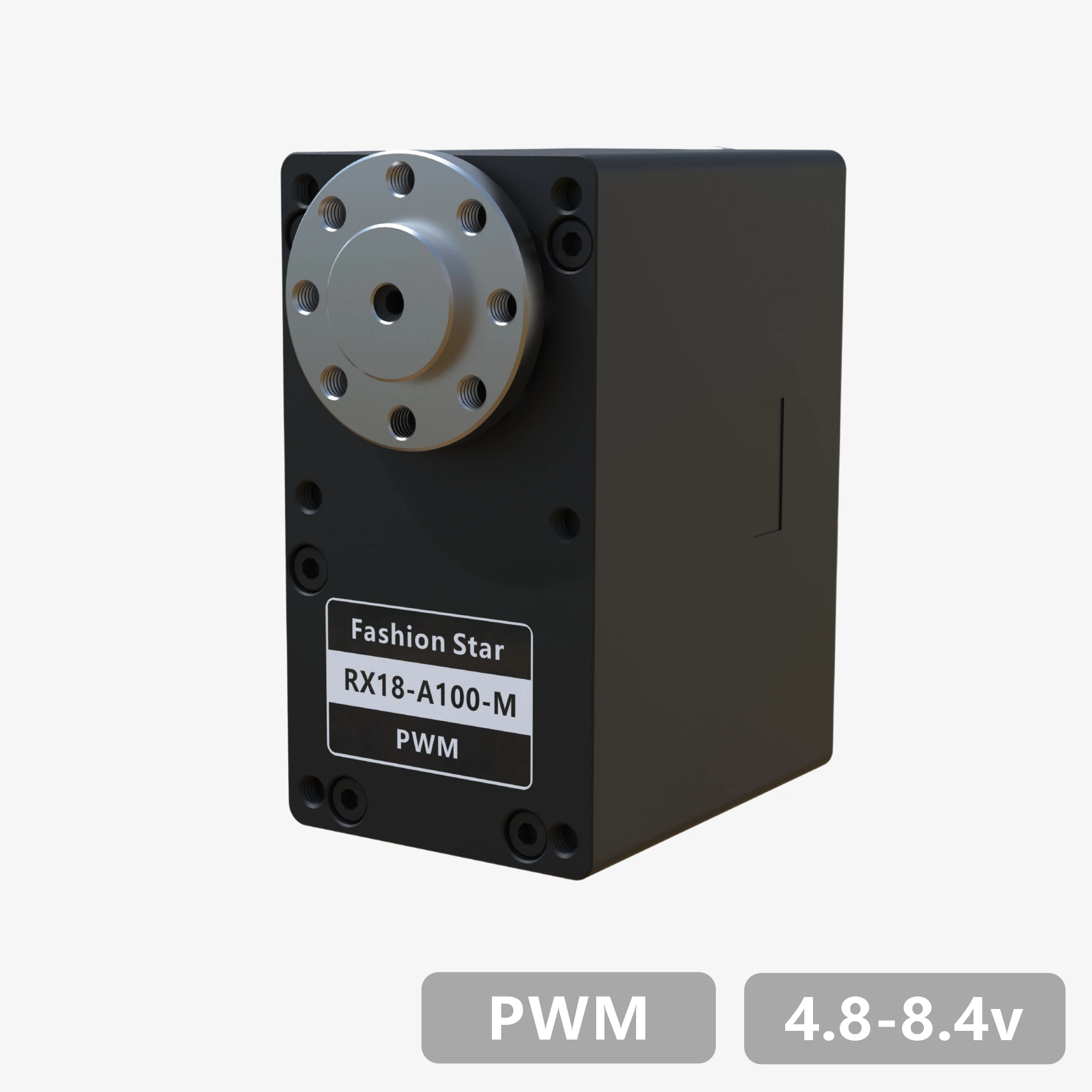

RX18-A100-M RX18-A100H-M
