Datasheet - STM32 Bus Servo Development Board PTC-32
1. Features
- Integrated TTL/USB conversion
- Onboard 4+2 buttons
- Dedicated OpenMV interface
2. Specifications
| Item | Value |
|---|---|
| Input Voltage | 6.0-8.7 V |
| Signal Conversion | Half-duplex to full-duplex |
| TTL Logic Level | 3.3 V | 5.0 V |
| Maximum Current Capacity | 20 A |
| Output Port | 1 serial port |
| Data Interface | MicroUSB |
| Operating Temperature | -10 to 60 C |
| Protection | Reverse polarity protection |
| Servo Port | PH2.0 × 2 |

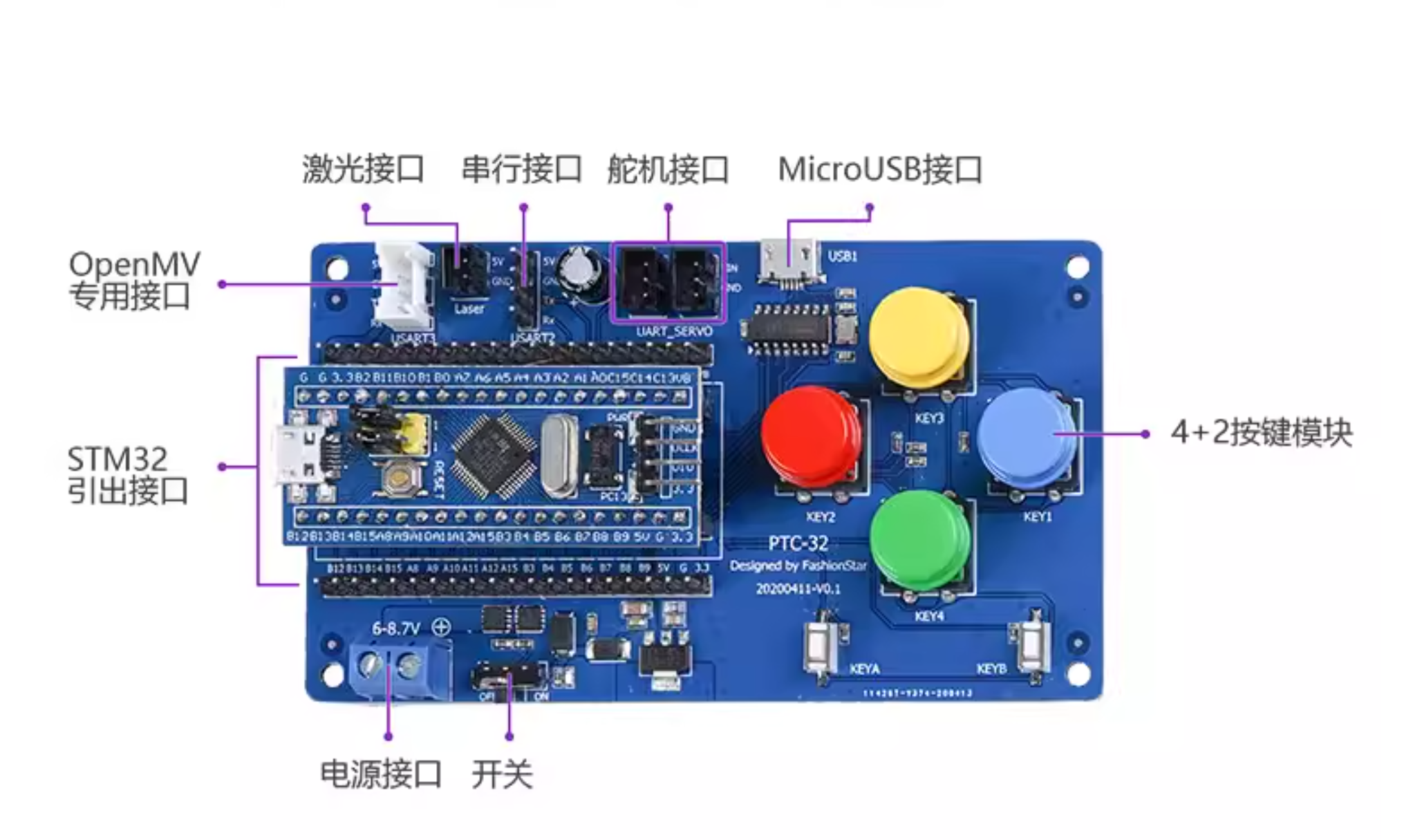

3. Interface Overview
Pin Assignment

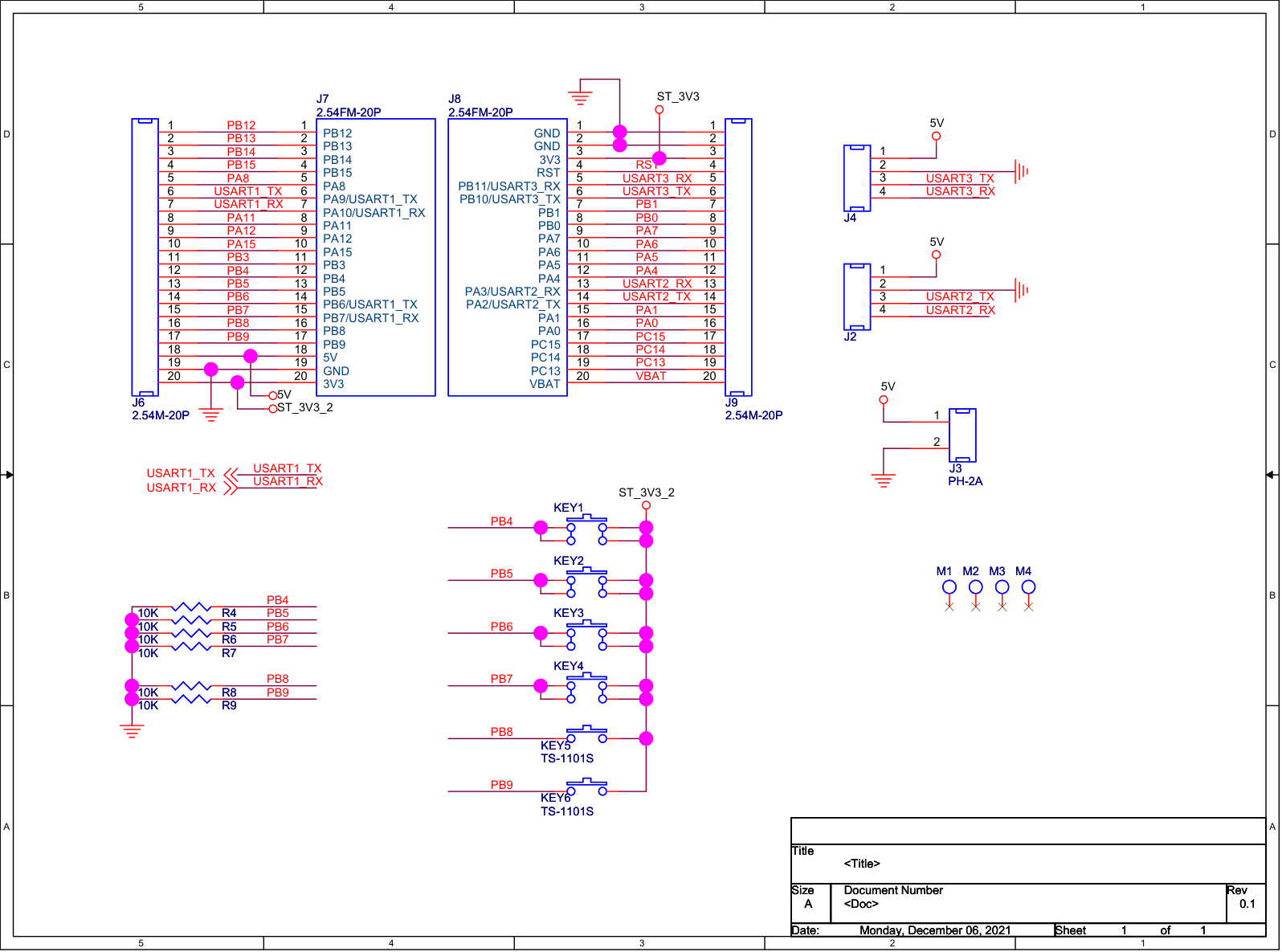

4. Reference Wiring Diagram
