Datasheet - TTL/RS232 Adapter and Configuration Board UC-02
1. Features
- UC-02 is a TTL/RS232 converter board with integrated half-duplex and full-duplex conversion
- Supports 5.0 V TTL output
- Equipped with an RS232 data interface
- Suitable for communication between bus servo and other platforms, improving compatibility and ease of use
2. Specifications
| Item | Value |
|---|---|
| Input Voltage | 6.0-15.0V |
| Signal Conversion | Half-duplex to full-duplex |
| TTL Logic Level | 5.0 V |
| Maximum Current Capacity | 20 A |
| Output Port | 1 serial port |
| Data Interface | RS232 |
| Operating Temperature | -10 to 60 C |
| Protection | Reverse polarity protection |
| Servo Port | PH2.0 × 6 |
| Mounting Holes | M2.0 x 2 |
| Power Indicator | Green |
| Dimensions | 36 x 24 mm |
| Weight | 5 g |
3. Interface Overview

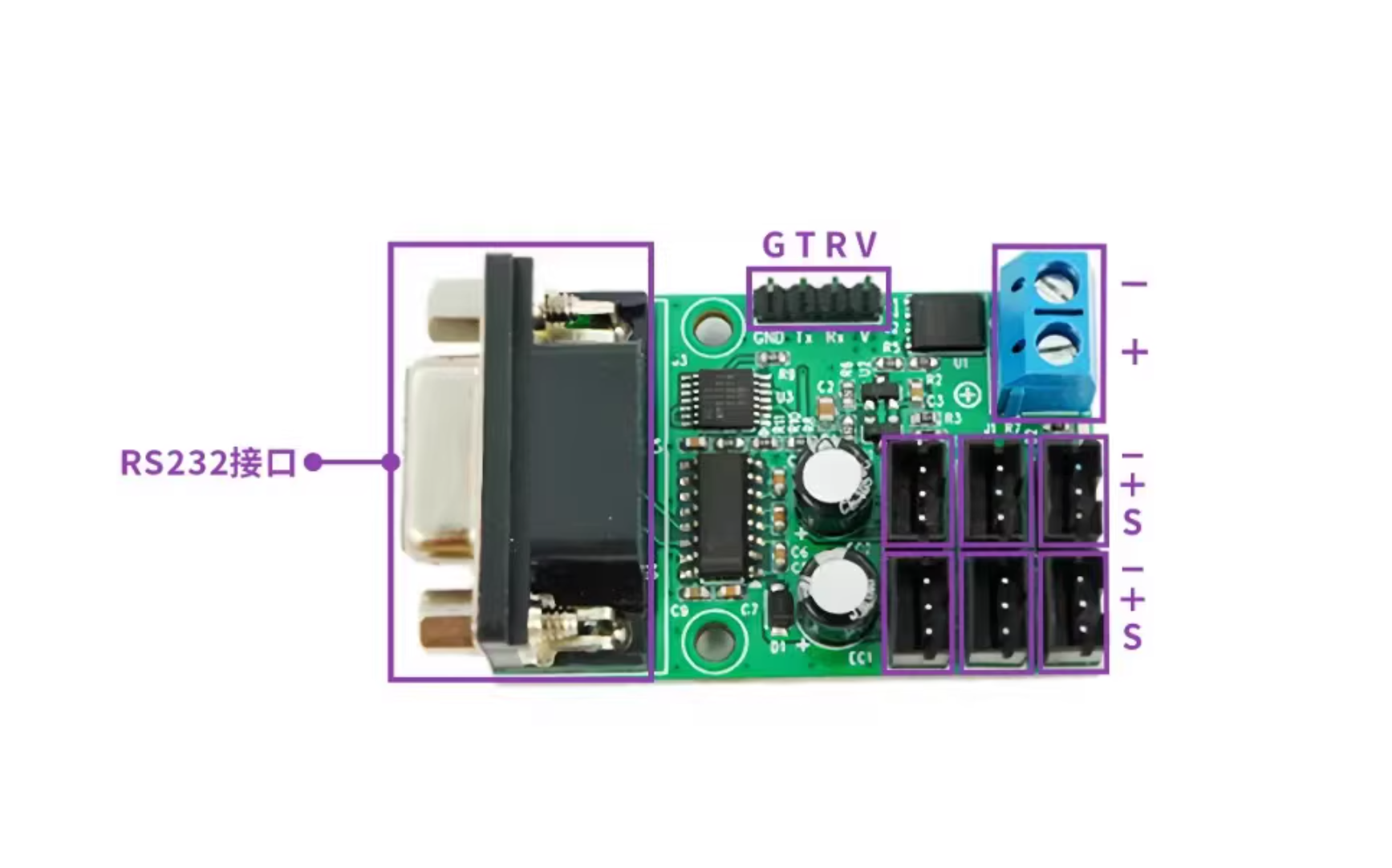

Pin Assignment

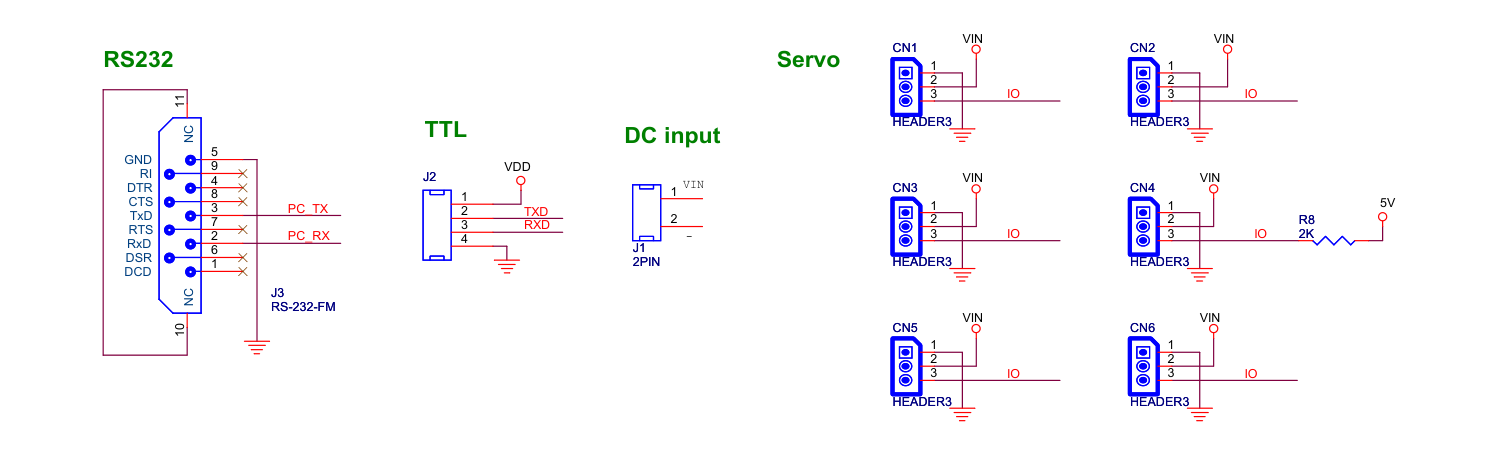

4. Reference Wiring Diagram
