Datasheet - Bus Servo Debug and Power Board RUC-01

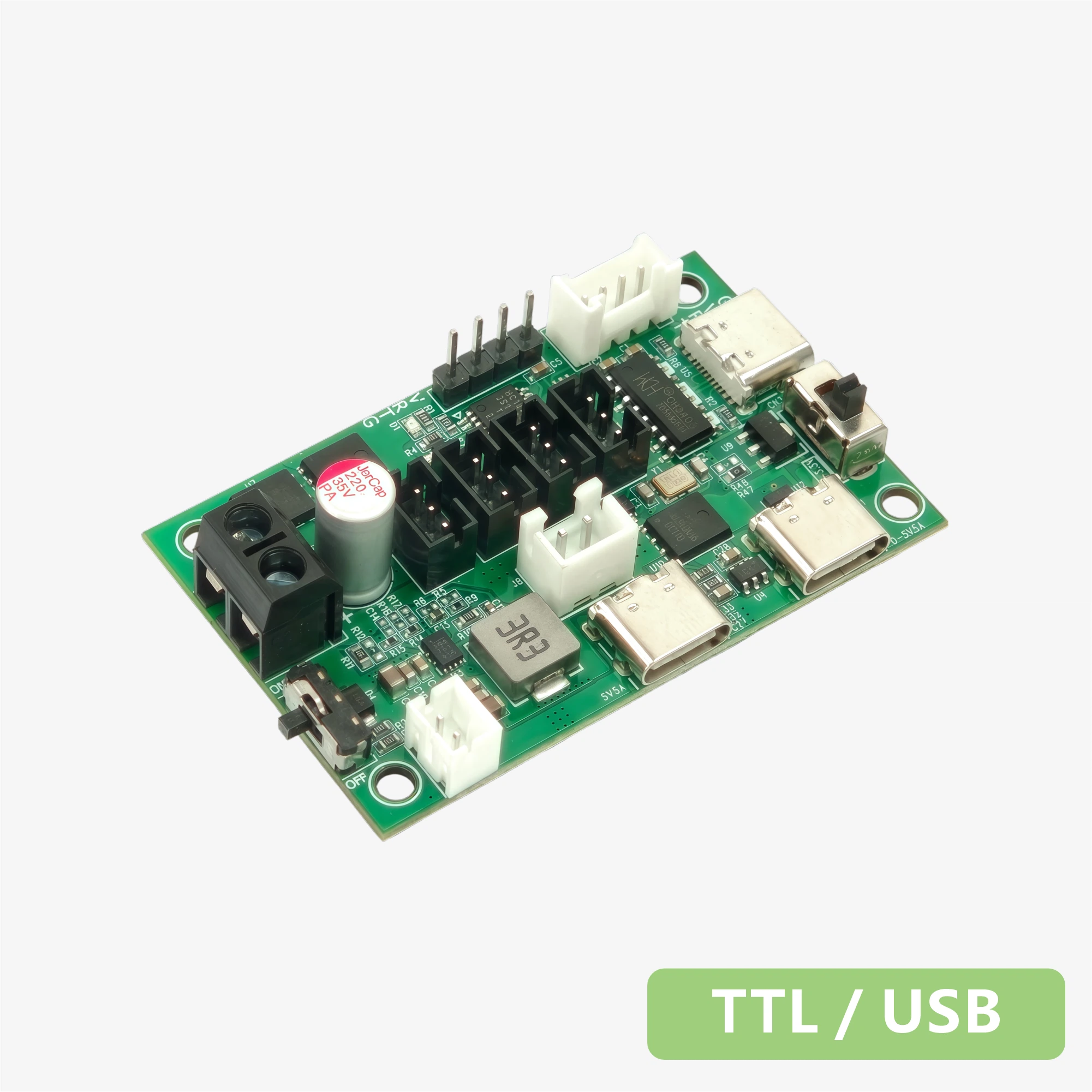

1. Features
- Integrated half-duplex and full-duplex conversion
- Supports switching between 3.3 V and 5.0 V logic levels
- Equipped with a Type-C data interface
- Suitable for ID configuration, parameter setting, and communication between bus servo devices and a PC or other platforms
- Supports Type-C PD3.0/2.0 protocol output at 5 V / 5 A
2. Specifications
| Item | Value |
|---|---|
| Input Voltage | 6.0-12.6 V |
| Signal Conversion | Half-duplex to full-duplex |
| TTL Logic Level | 3.3 V | 5.0 V |
| Maximum Current Capacity | 20 A |
| Serial Port Output | 2 groups |
| Data Interface | Type-C |
| Power Interface | Type-C (5 V / 5 A) |
| Type-C PD Protocol (5 V / 5 A) | |
| PH2.54-2P (5 V / 5 A) | |
| Operating Temperature | -10 to 60 C |
| Protection | Reverse polarity protection |
| Servo Port | PH2.0 × 4 |
| Mounting Holes | M2.0 × 4 |
| Power Indicator | Red |
| Dimensions | 56 × 35 mm |
| Weight | 13 g |
3. Interface Overview

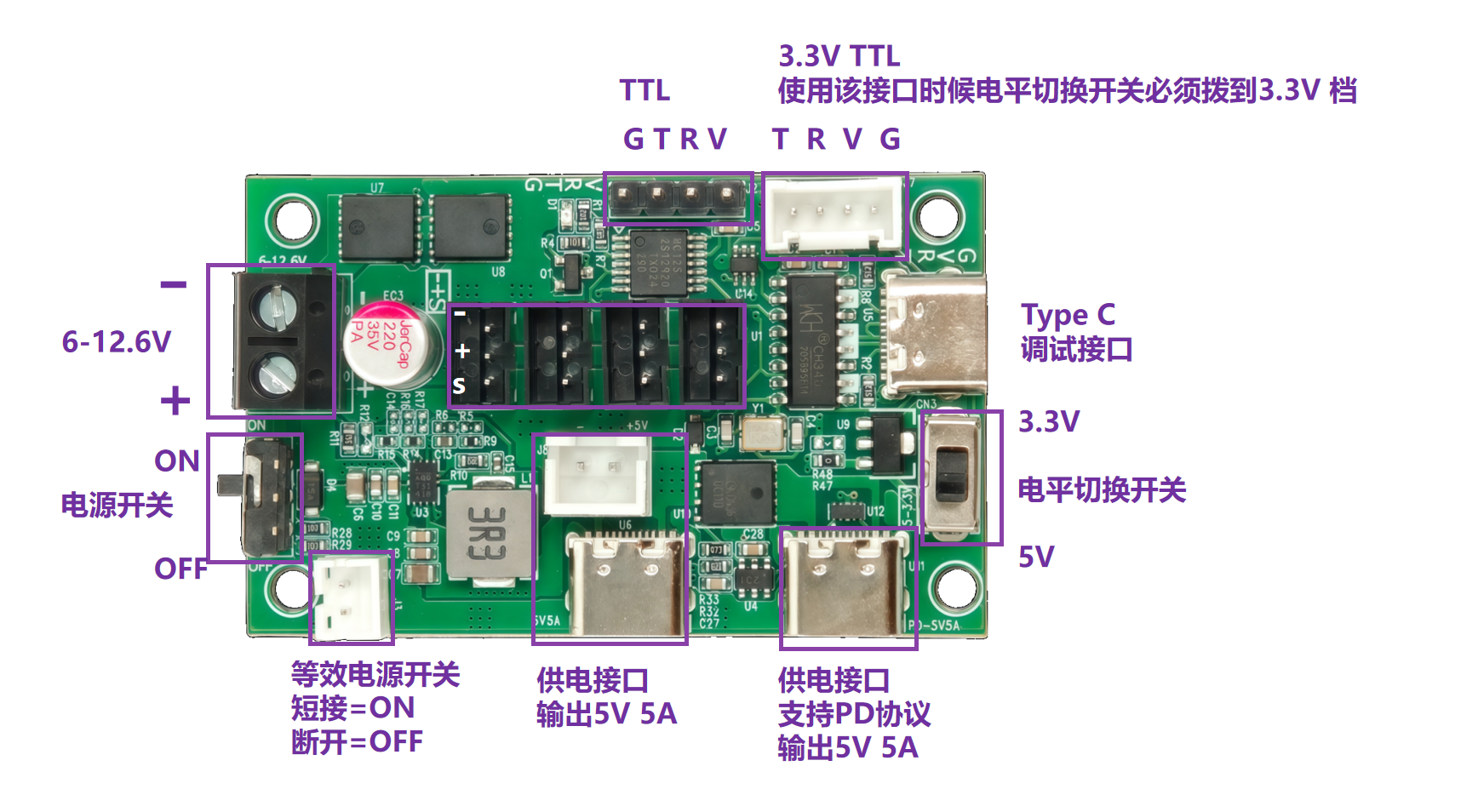

Pin Assignment
4. Dimensions

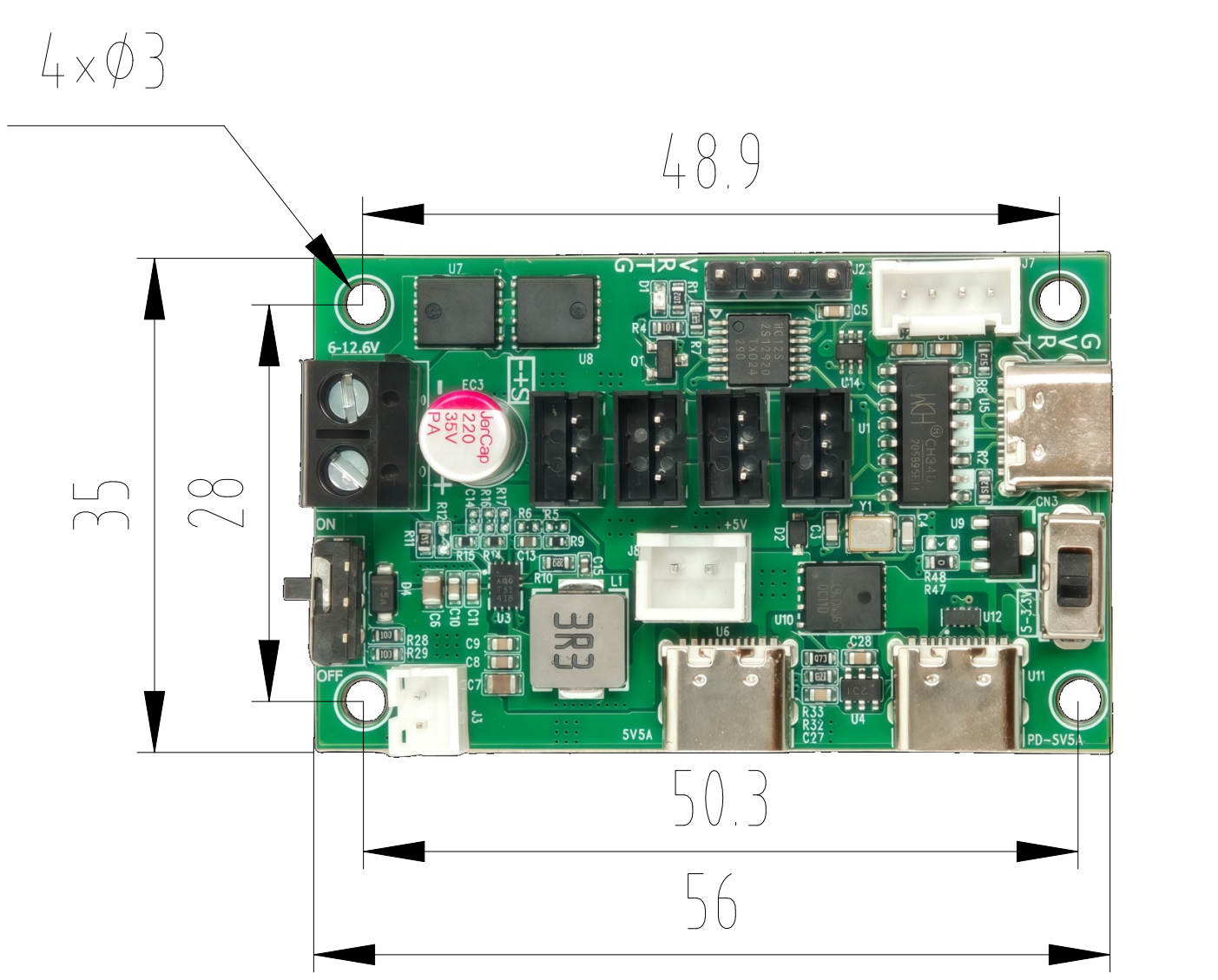

Mechanical Dimensions

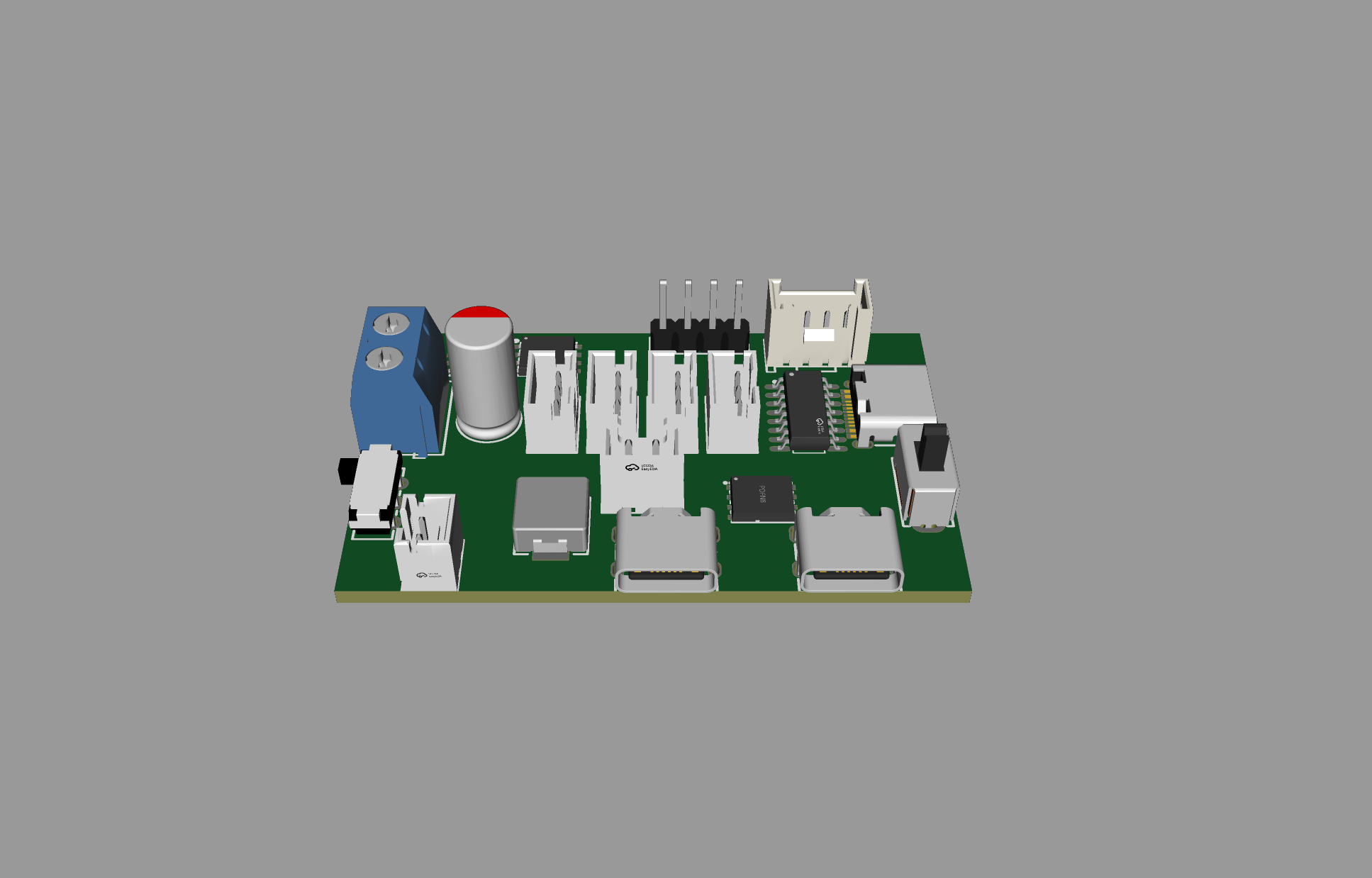

5. 3D Model File
