Horns and Brackets - CAD Drawings and 3D Model Downloads

Tip

  • We recommend using SolidWorks 2021 or later to open the models.
  • This page only shows accessories for dual-axis servo devices. For single-axis servo accessories, please visit UART Bus Servo ｜ RS485 Bus Servo ｜ CAN Bus Servo ｜ PWM Digital Servo.
  • Horn accessories are included at the factory. Brackets must be purchased separately.

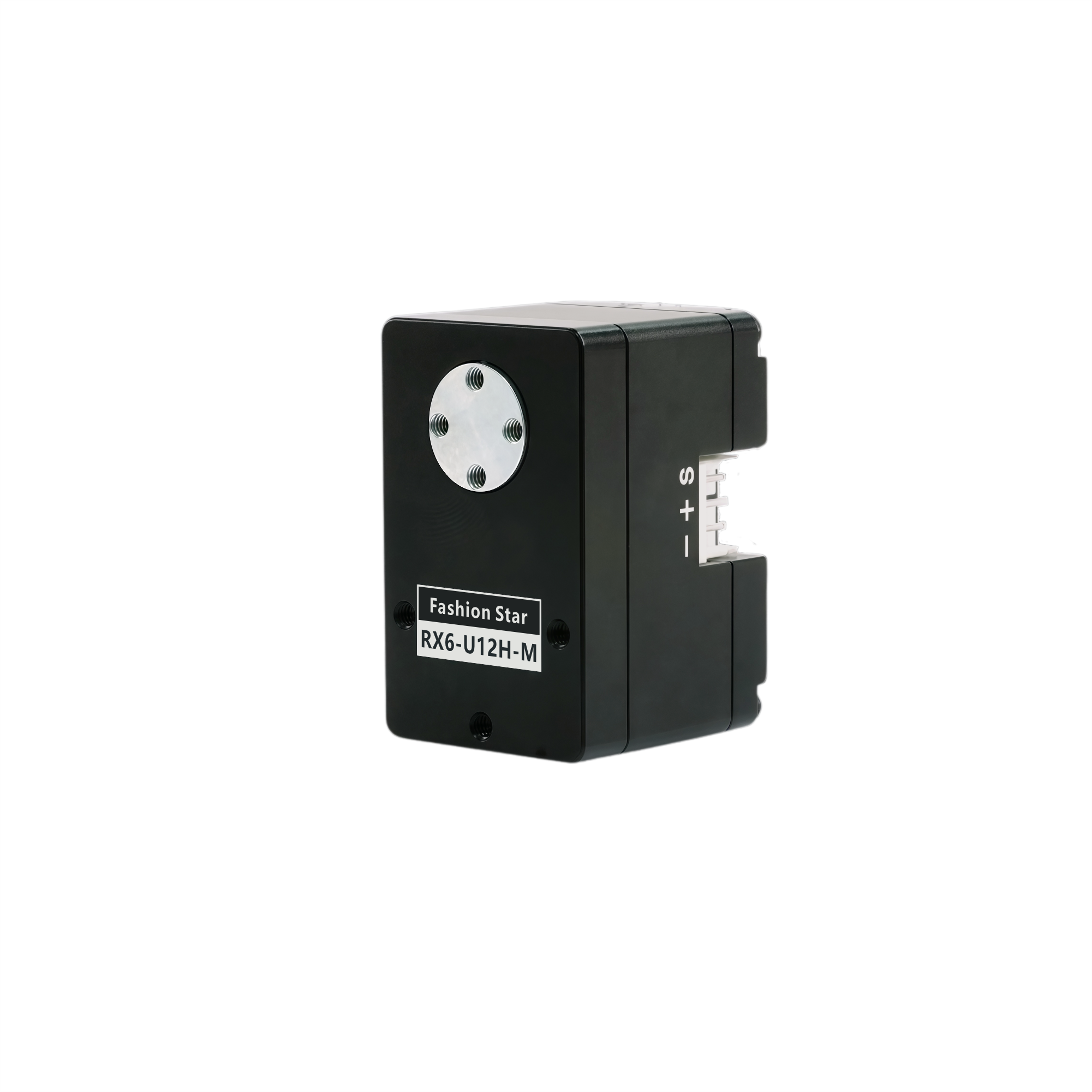

RX6-U12H-M

RX6-U12H-M

RX6-U12H-M
Appearance Name Download

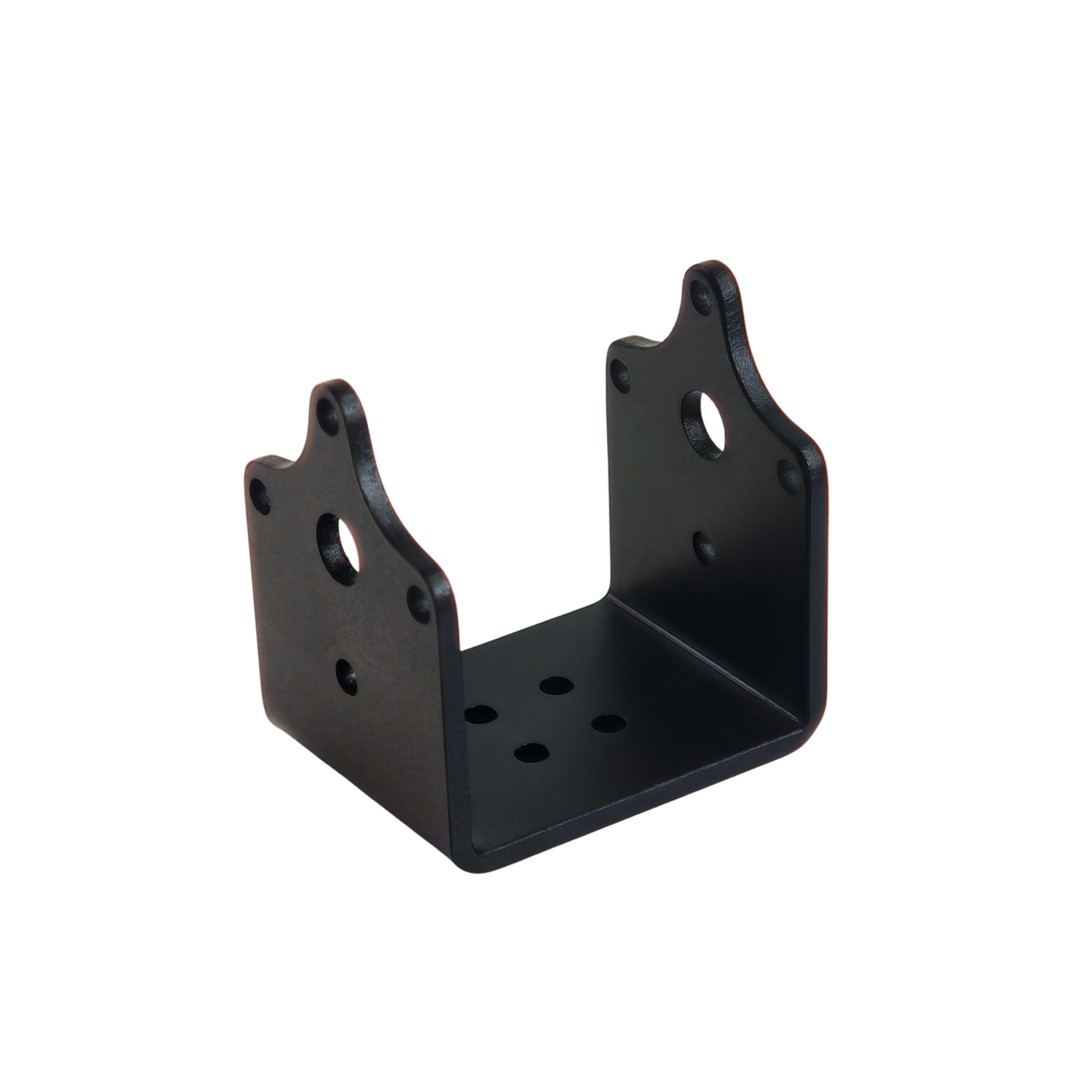

U-shaped body bracket - 19.6 mm U-Shaped Body Bracket (19.6 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

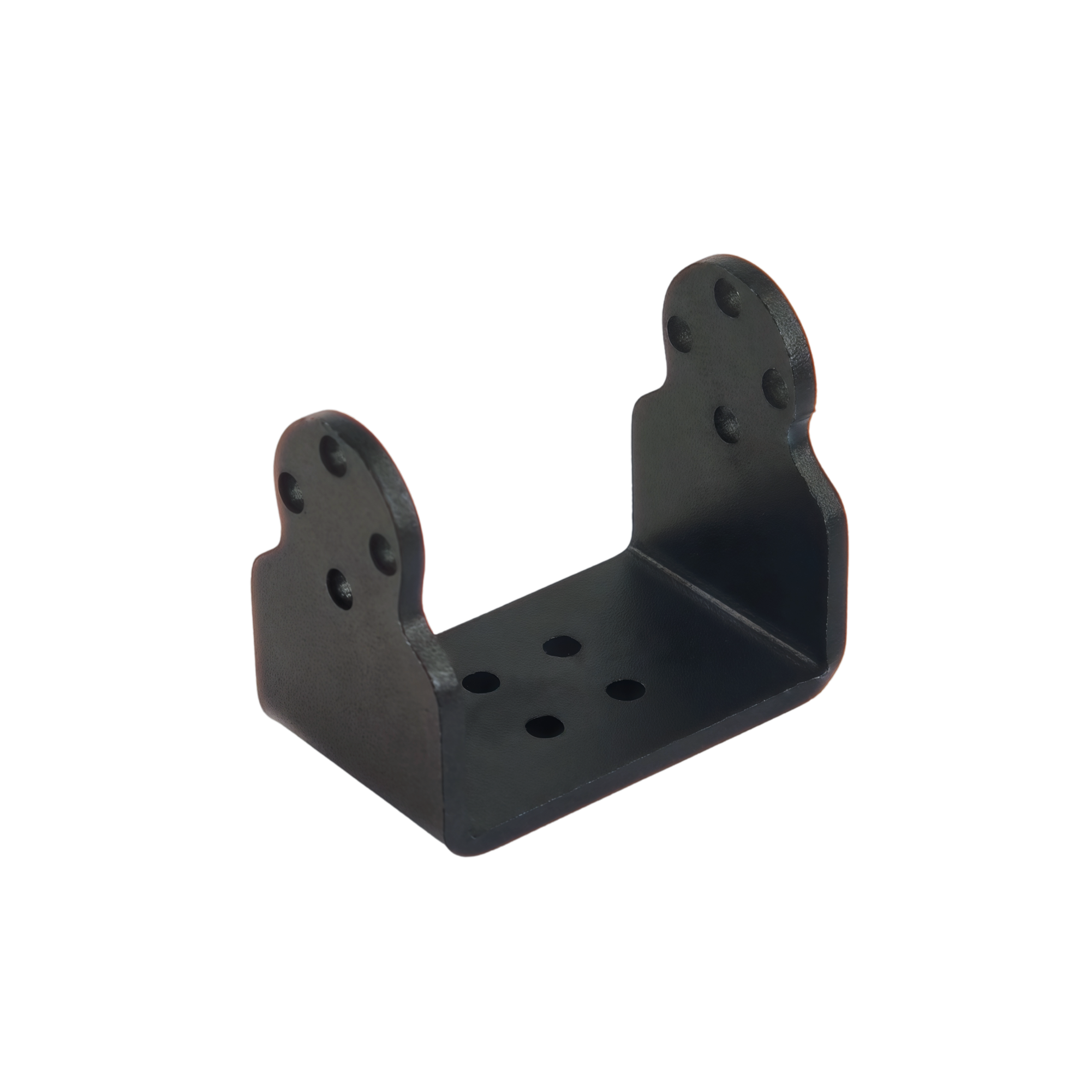

U-shaped horn bracket - 16 mm U-Shaped Horn Bracket (16 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

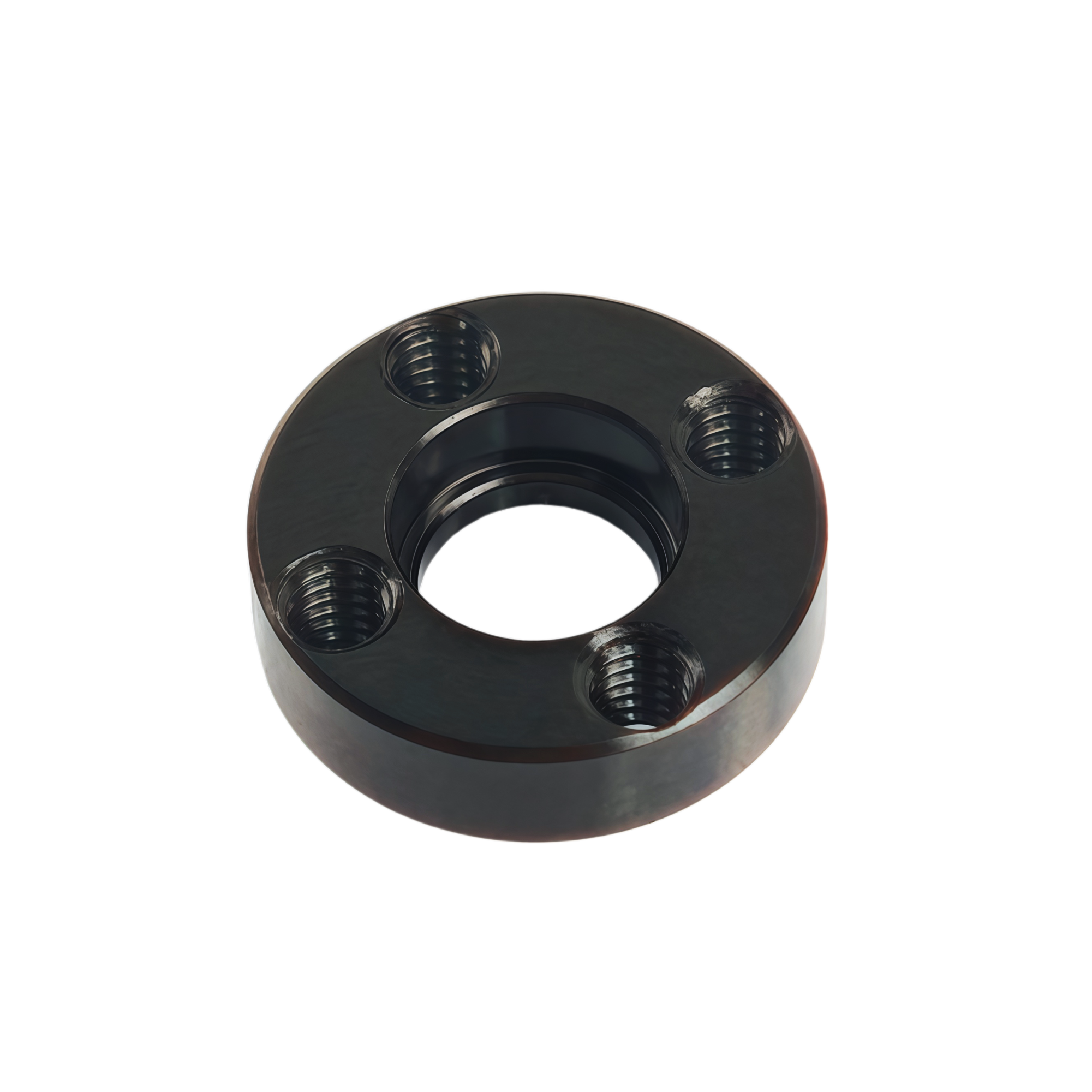

272 secondary horn 272 Secondary Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

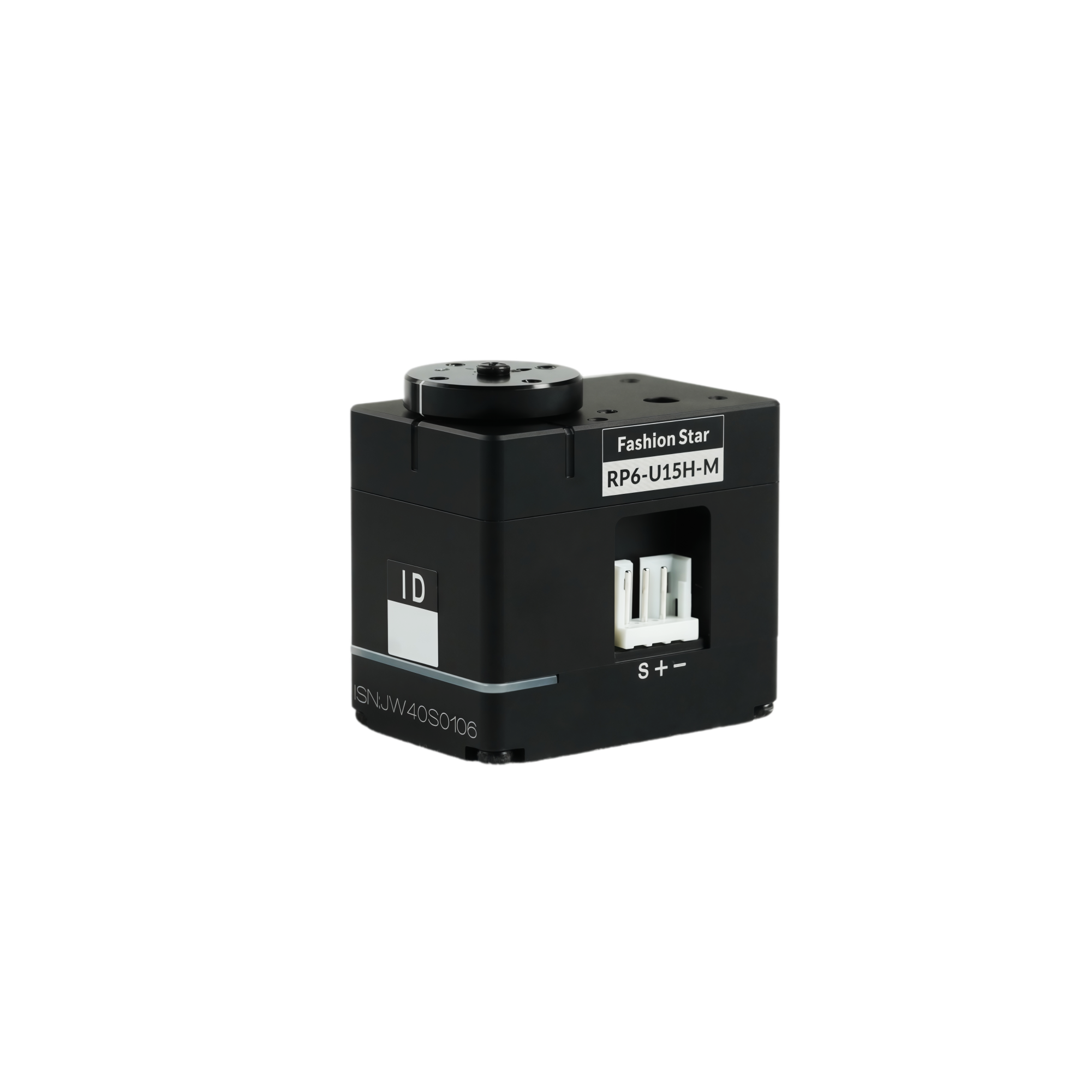

RP6-U15H-M

RP6-U15H-M

RP6-U15H-M
Appearance Name Download

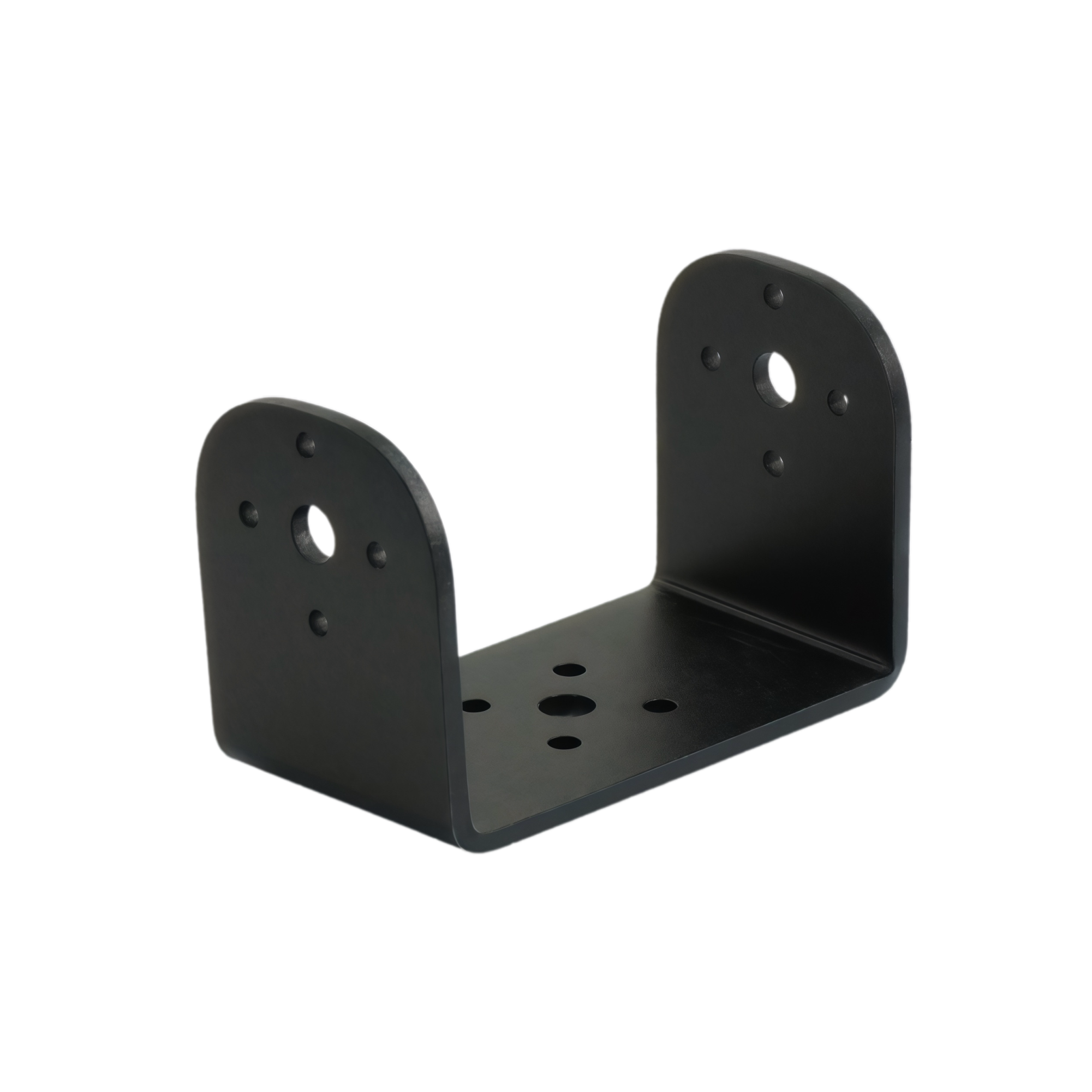

U-shaped horn bracket - 38 mm U-Shaped Horn Bracket (38 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

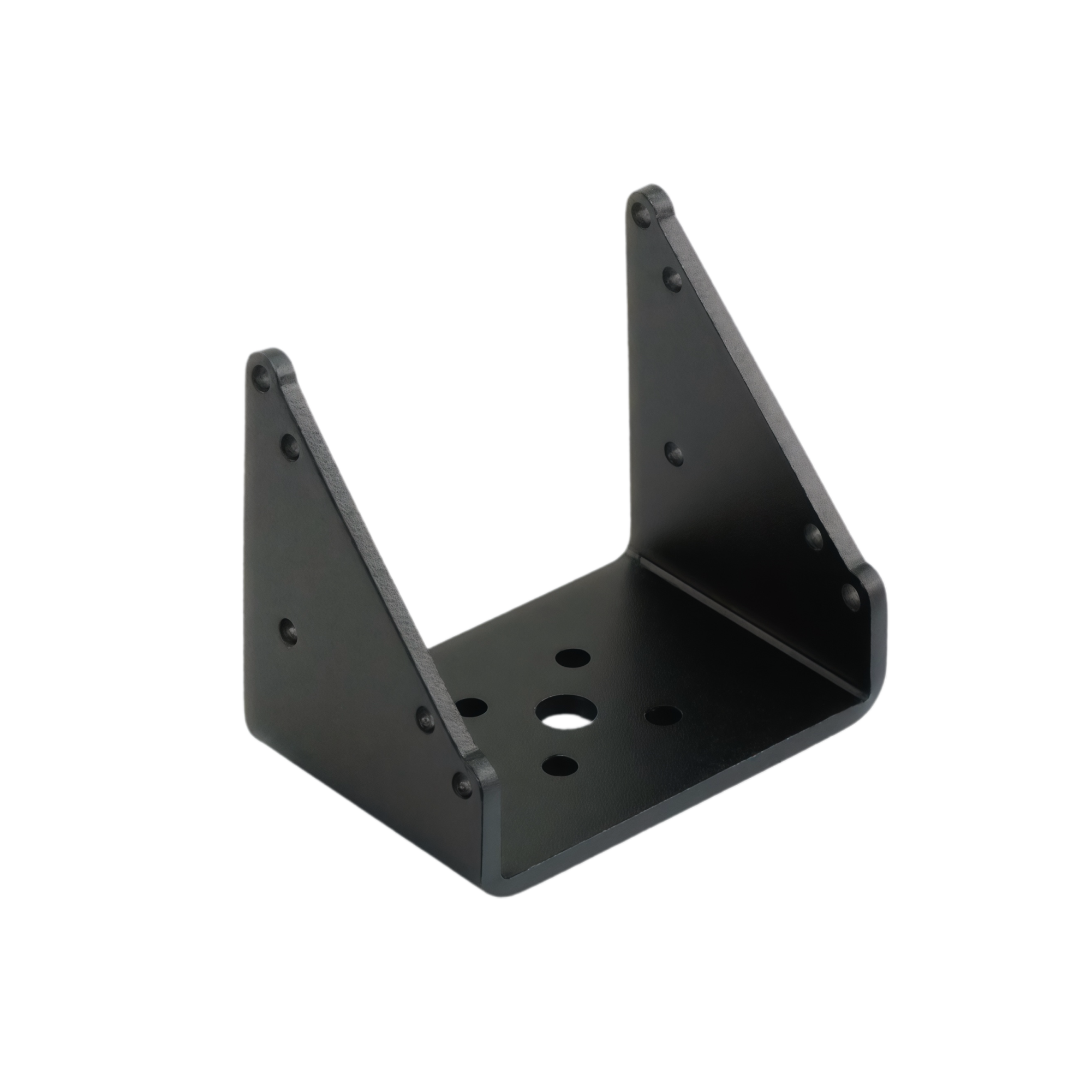

U-shaped body bracket - 31 mm U-Shaped Body Bracket (31 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

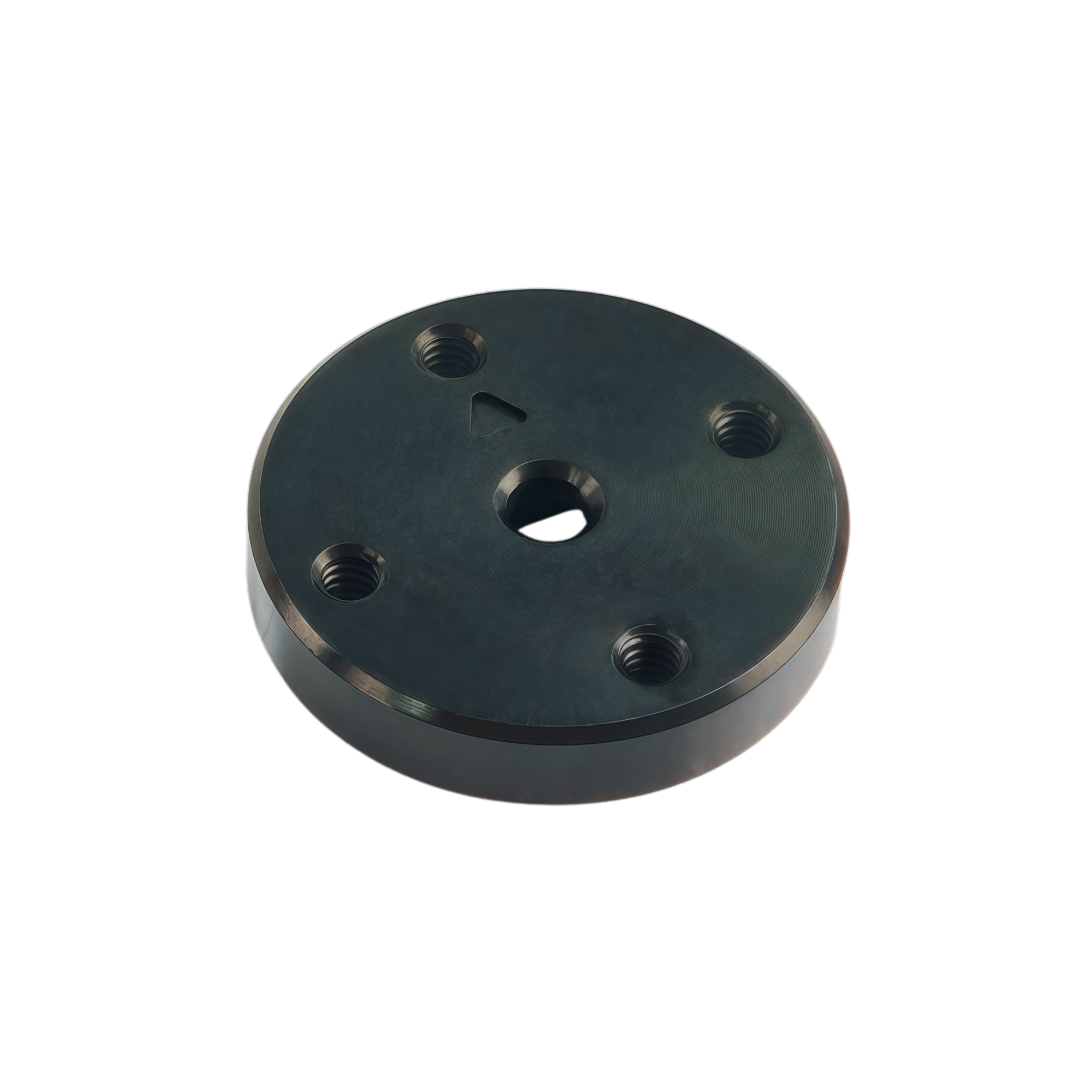

15 kg main horn 15 kg Main Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

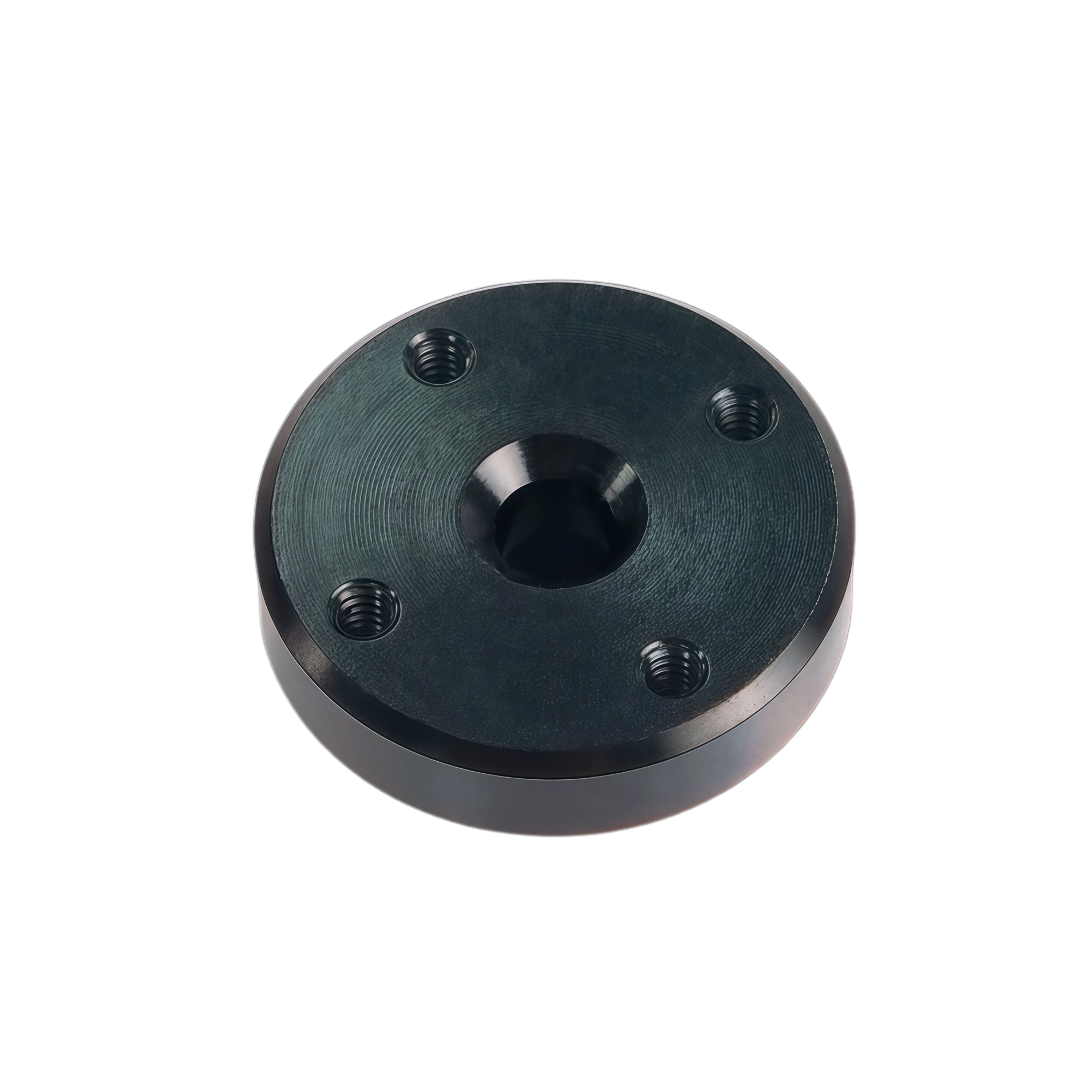

15 kg secondary horn 15 kg Secondary Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

UART / PWM 40x40x20 (mm) Series

UART Series

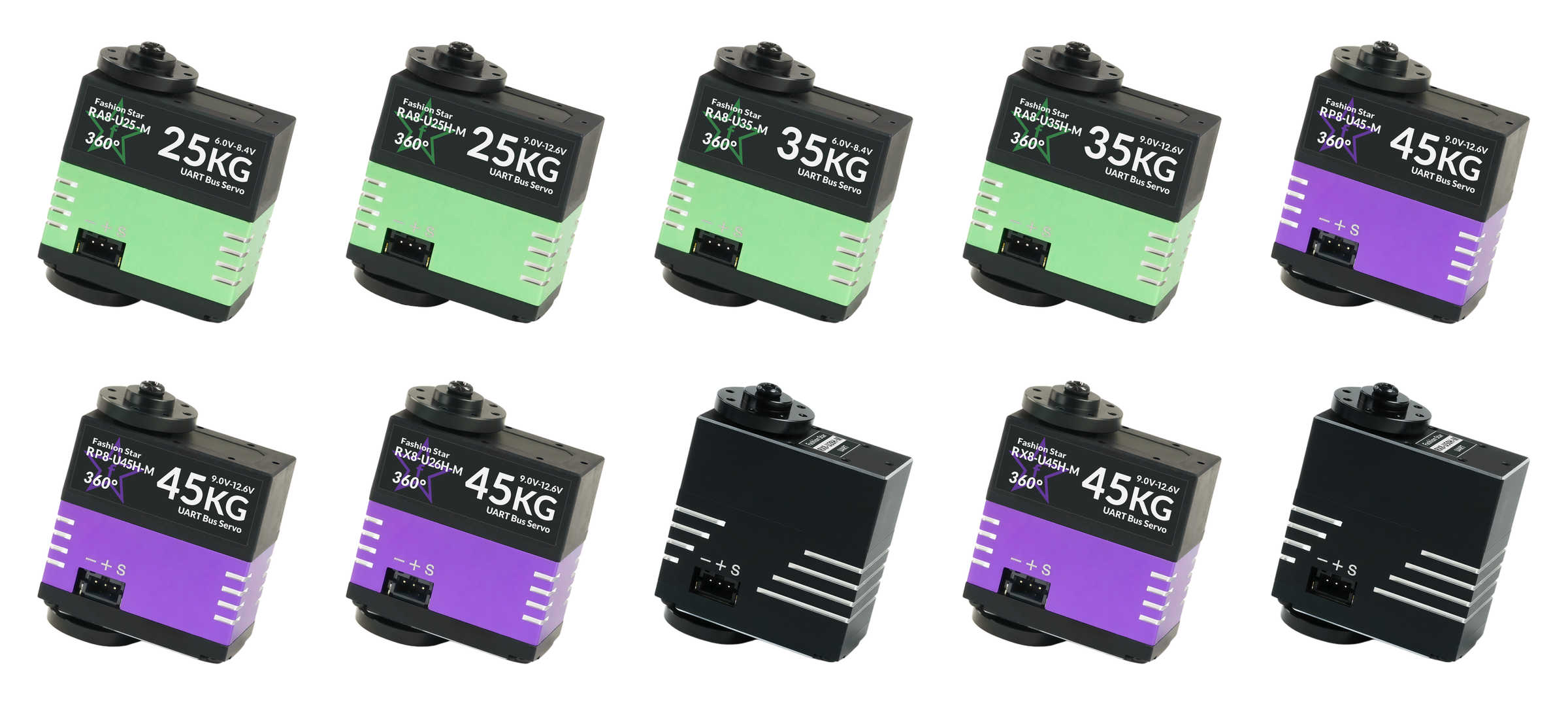

UART 40x40x20 (mm) series appearance

RA8-U25-M RA8-U25H-M RA8-U35-M RA8-U35H-M RA8-U45-M RA8-U45H-M RX8-U26H-M RX8-U28H-M RX8-U45H-M RX8-U50H-M
PWM Series

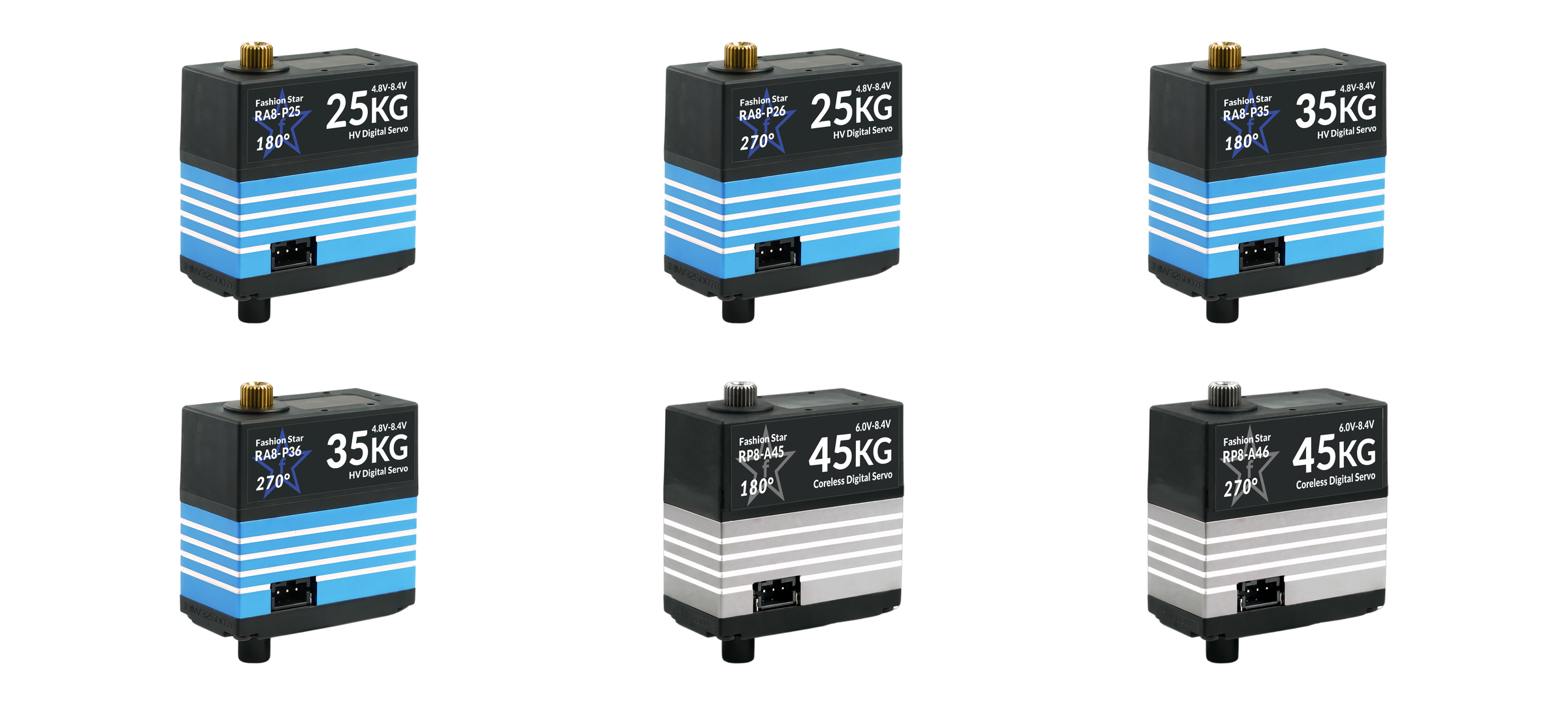

PWM 40x40x20 (mm) series appearance

RA8-P25 RA8-P26 RA8-P35 RA8-P36 RP8-A45 RP8-A46
Appearance Name Download

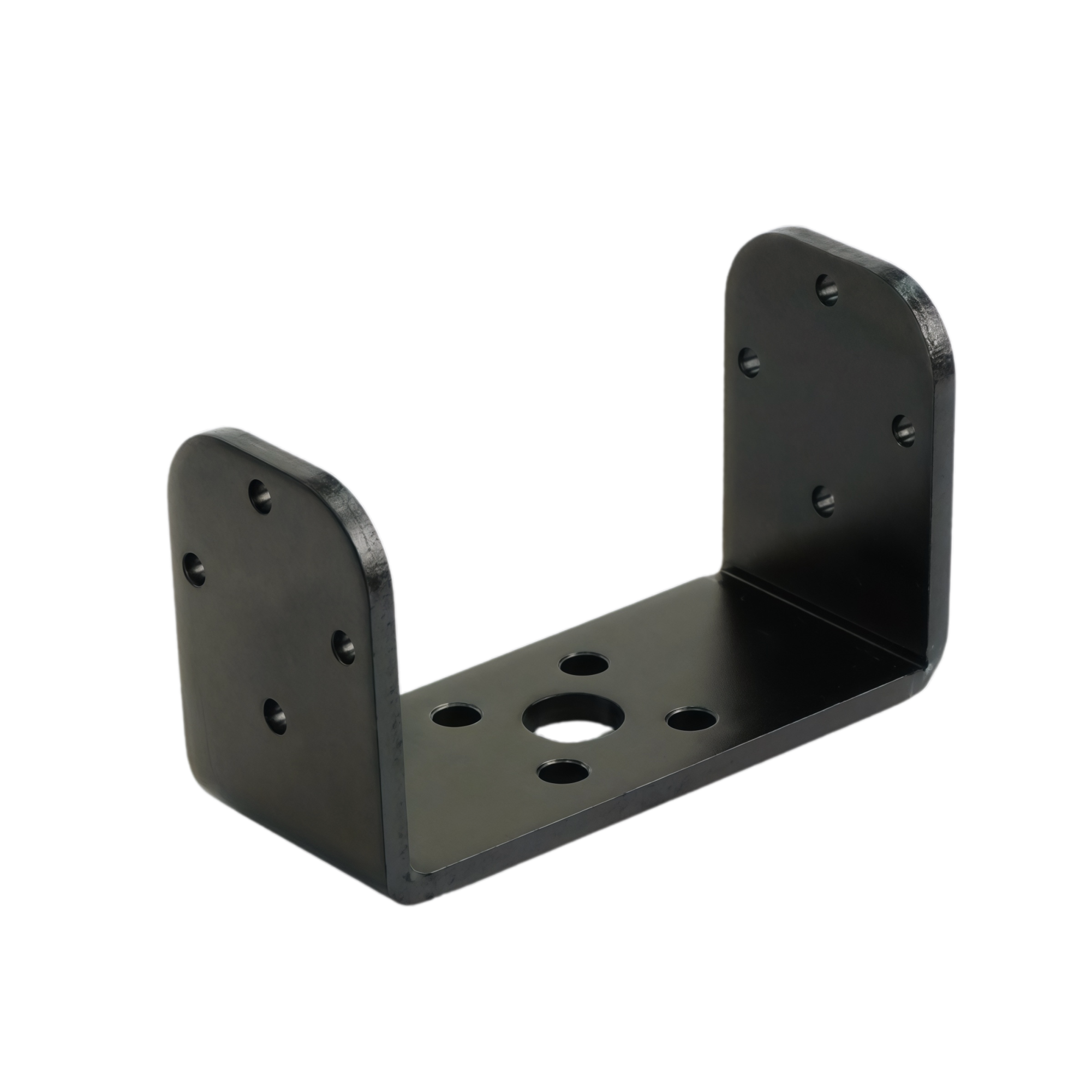

U-shaped body bracket - standard U-Shaped Body Bracket (Standard) PDF ｜ STEP ｜ DWGPDFSTEPDWG

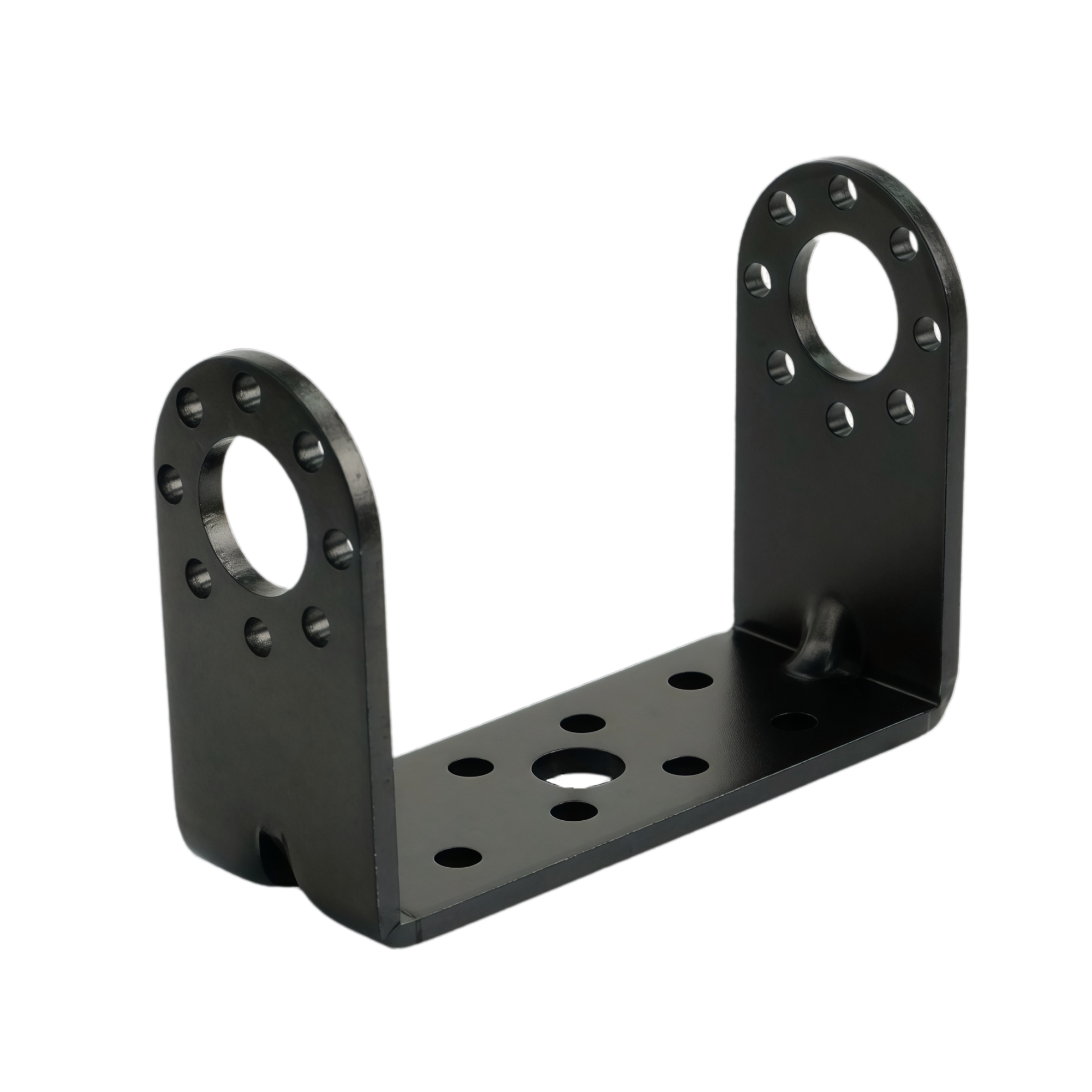

U-shaped horn bracket - 37 mm U-Shaped Horn Bracket (37 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

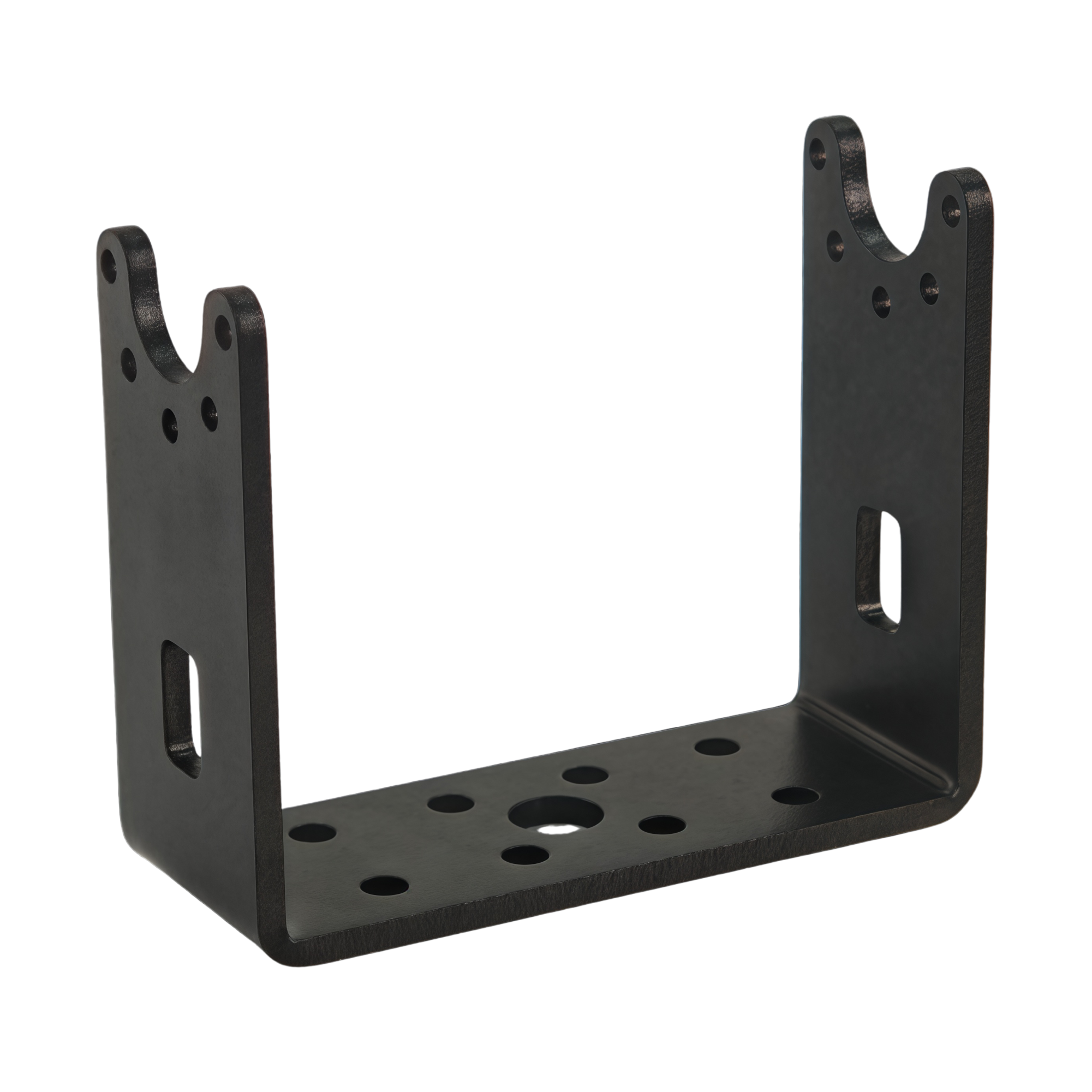

U-shaped semi-circular horn bracket - 50.7 mm U-Shaped Semi-Circular Horn Bracket (50.7 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

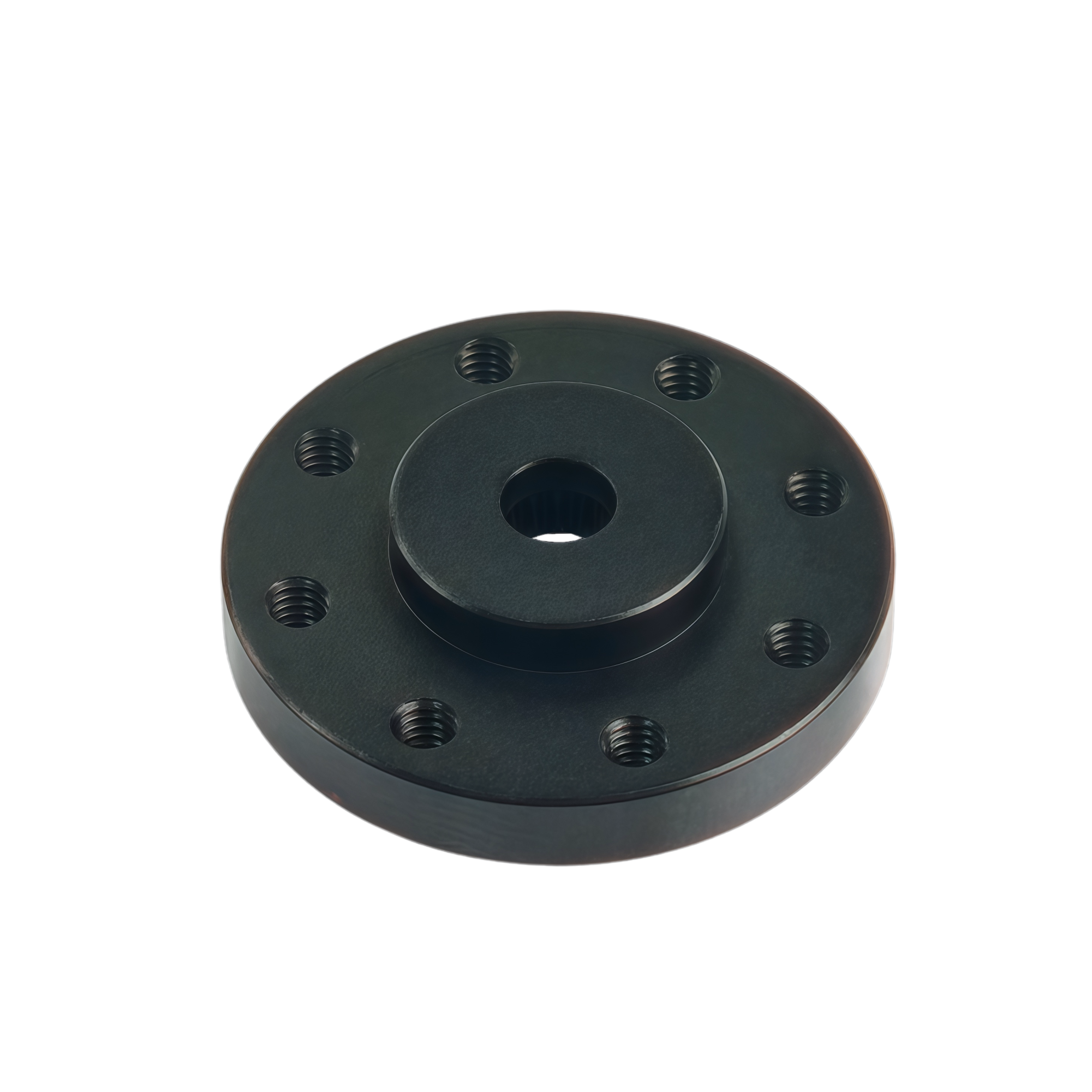

8-hole main horn 8-Hole Main Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

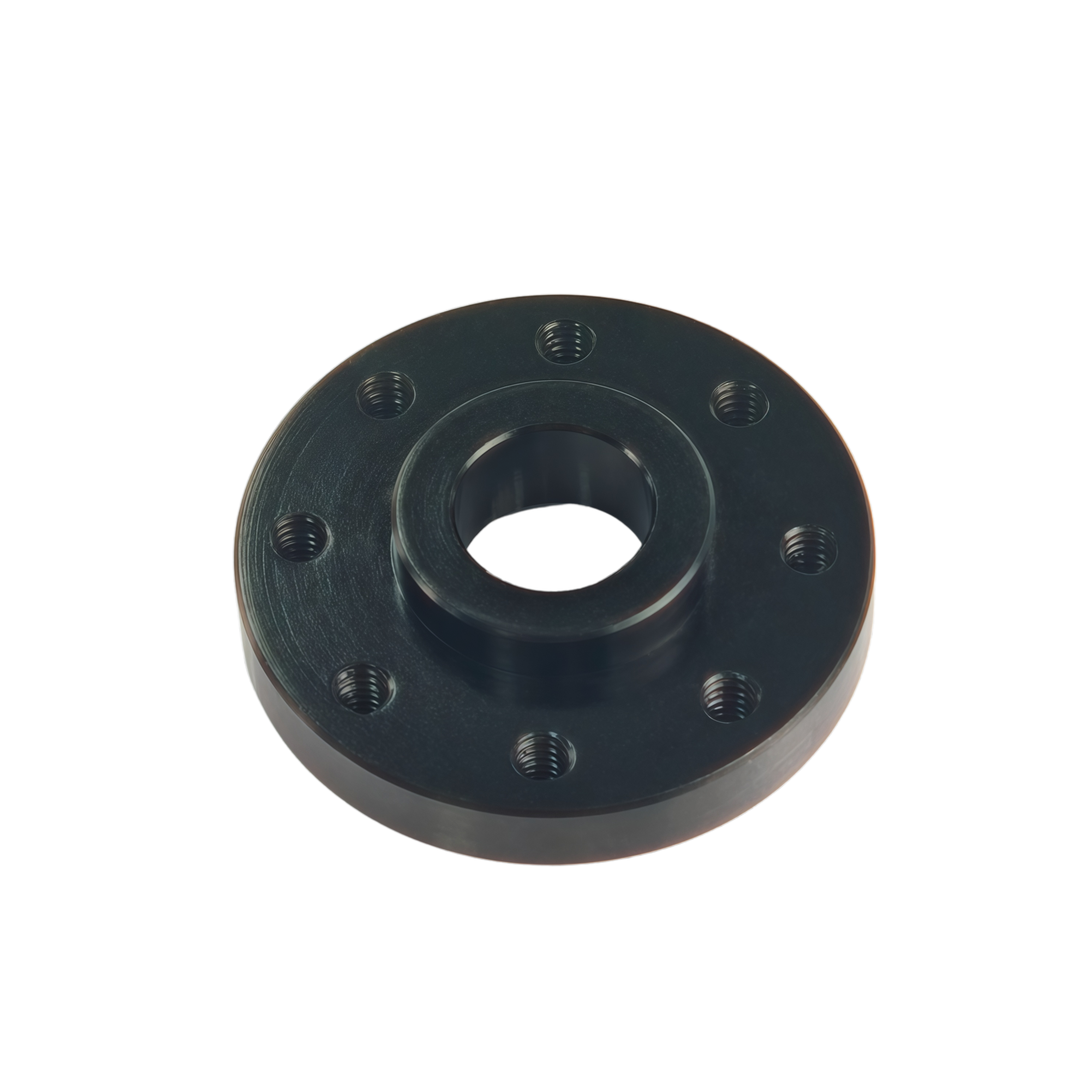

8-hole secondary horn 8-Hole Secondary Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

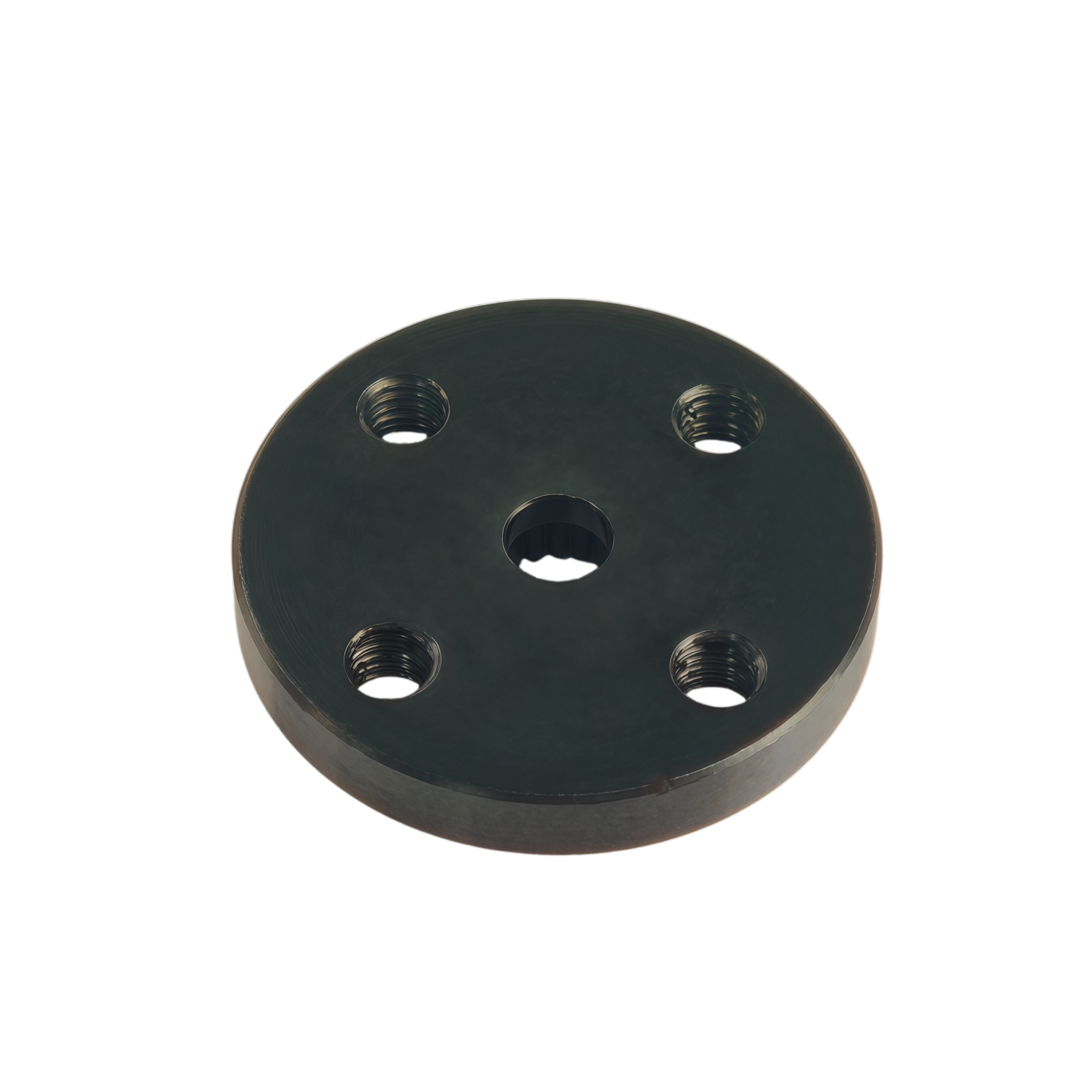

4-hole main horn 4-Hole Main Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

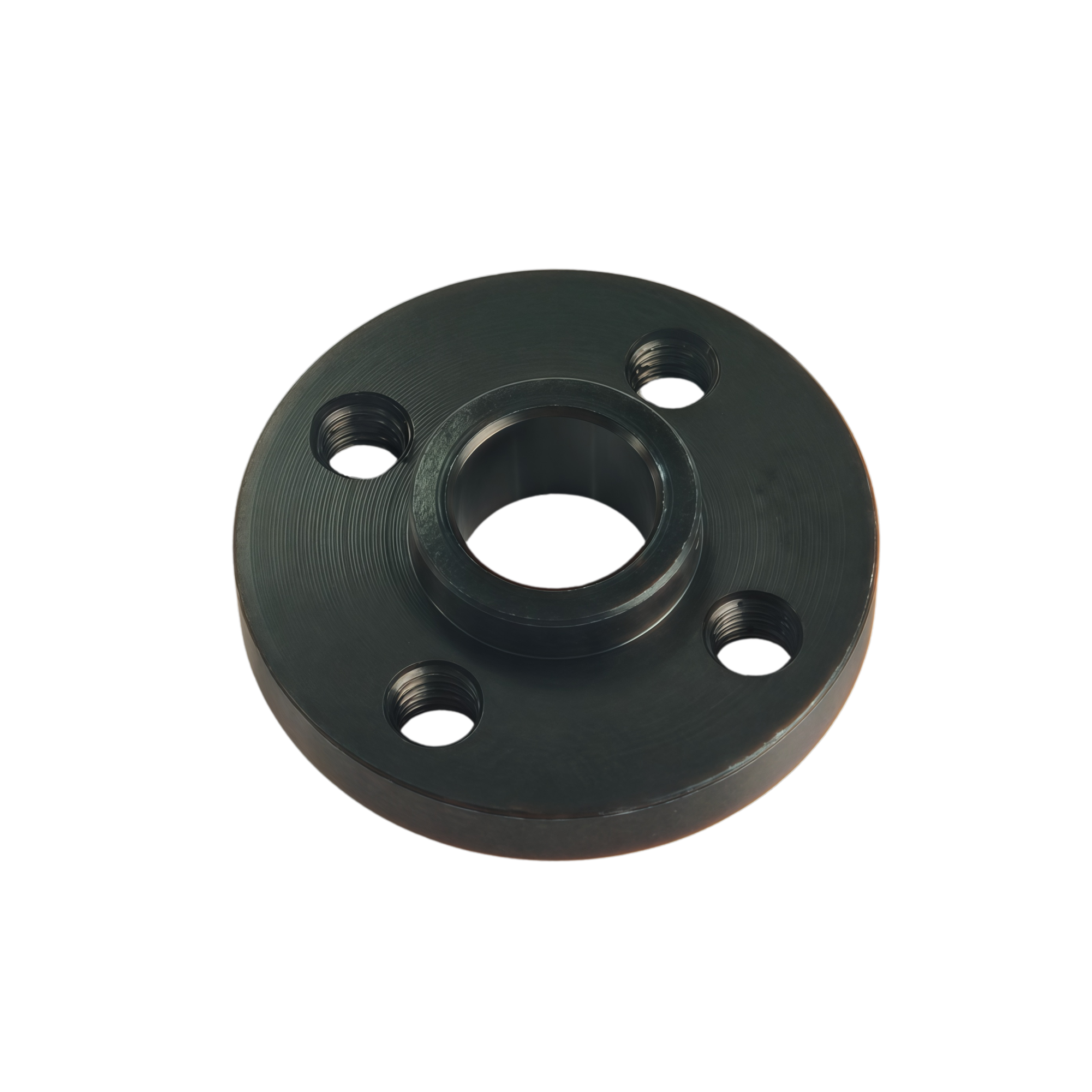

4-hole secondary horn 4-Hole Secondary Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

Tip

  • The 8-hole horns are included at the factory. The 4-hole horns must be purchased separately.

RX18 Series

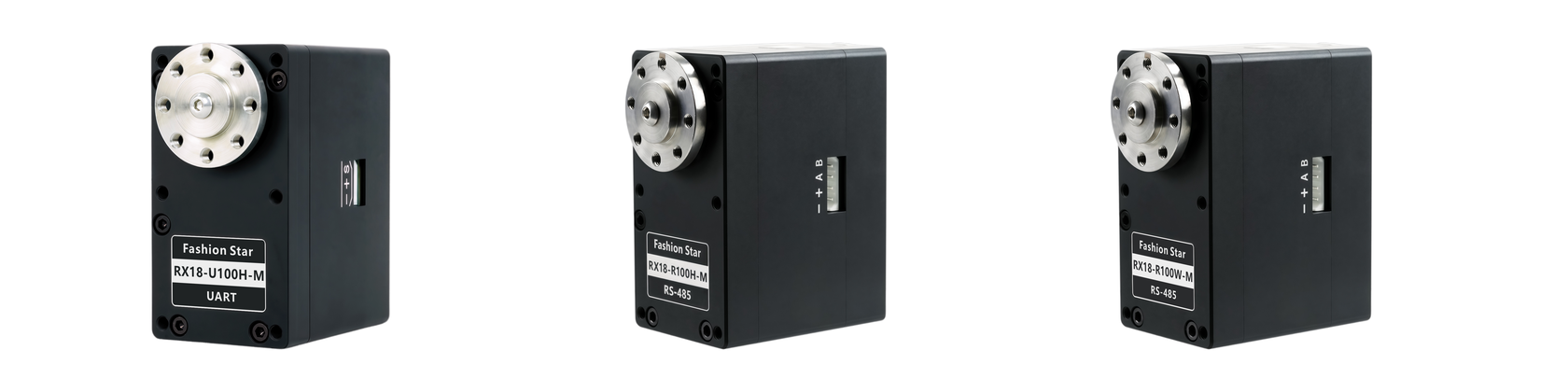

RX18 series appearance

RX18-U100H-M RX18-R100H-M RX18-R100W-M
Appearance Name Download

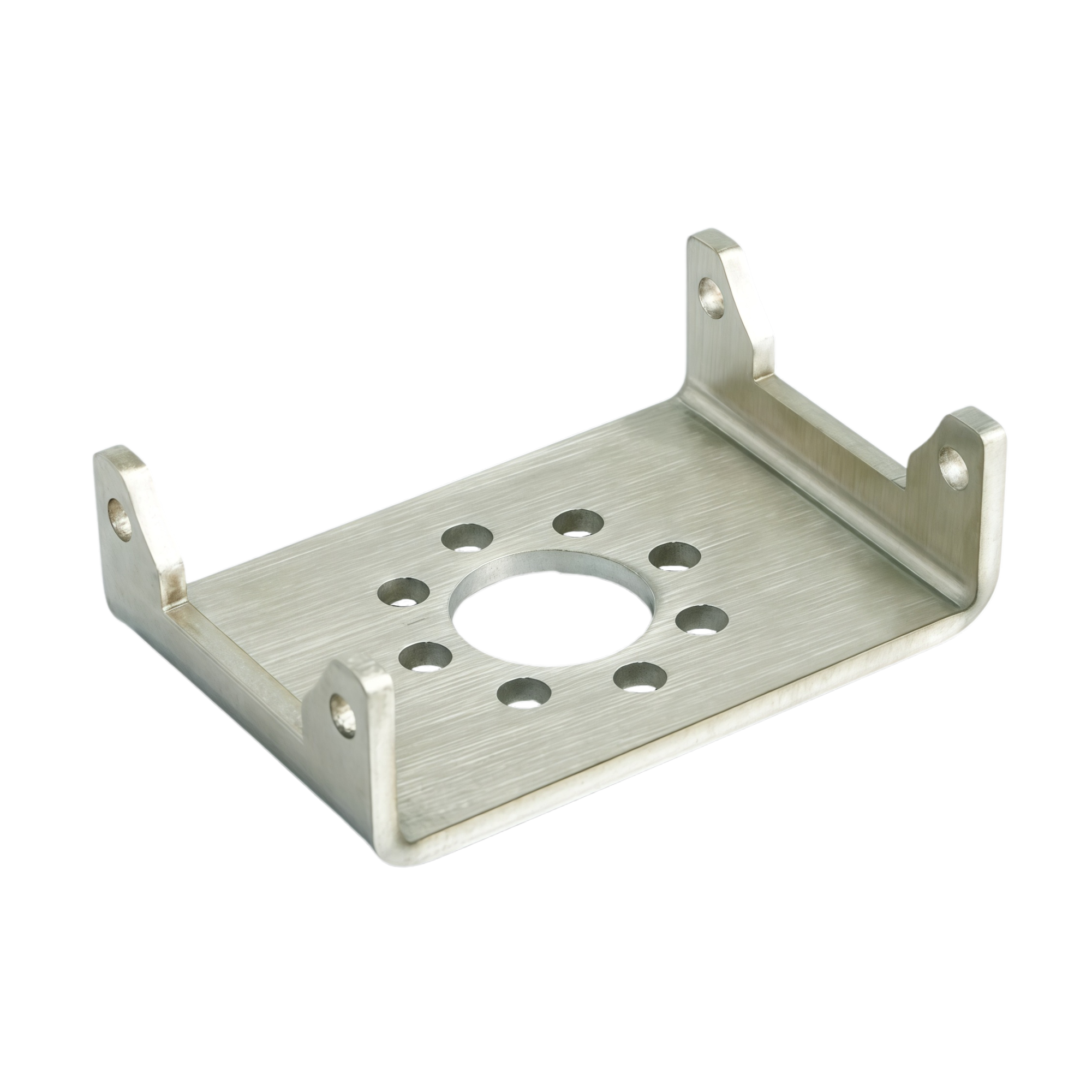

U-shaped body bracket - 51.6 mm U-Shaped Body Bracket (51.6 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

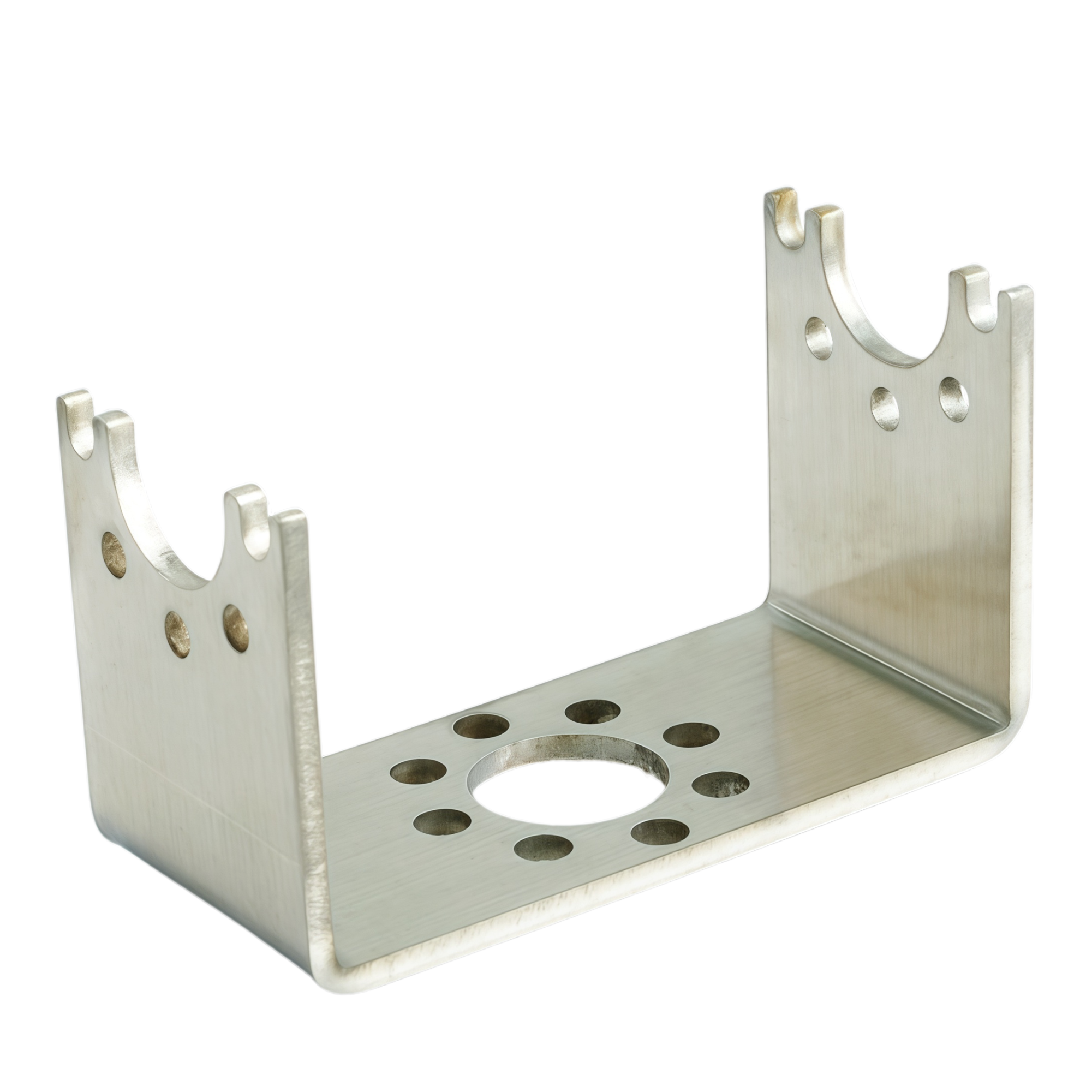

U-shaped horn bracket - 59.6 mm U-Shaped Horn Bracket (59.6 mm) PDF ｜ STEP ｜ DWGPDFSTEPDWG

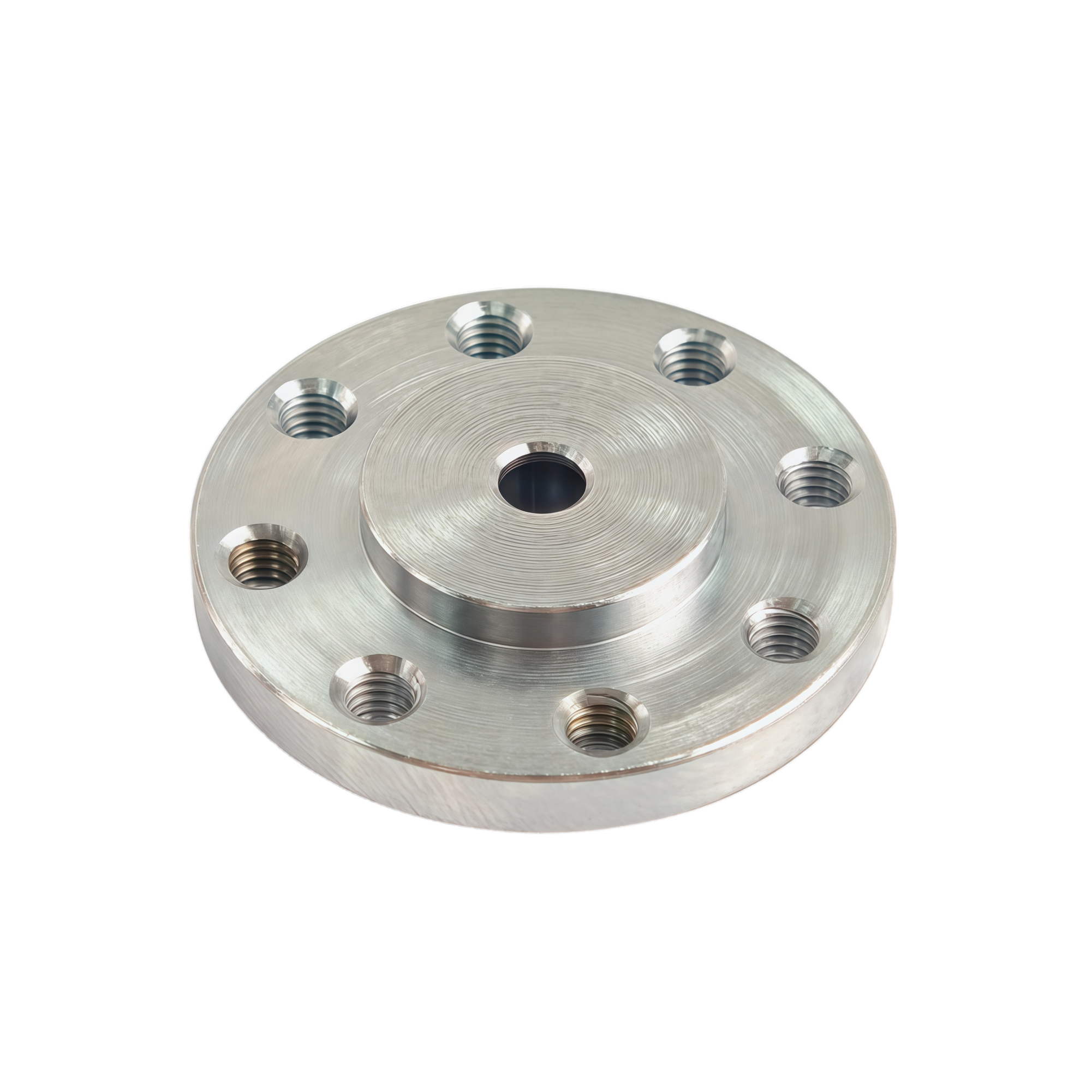

8-hole main horn 8-Hole Main Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

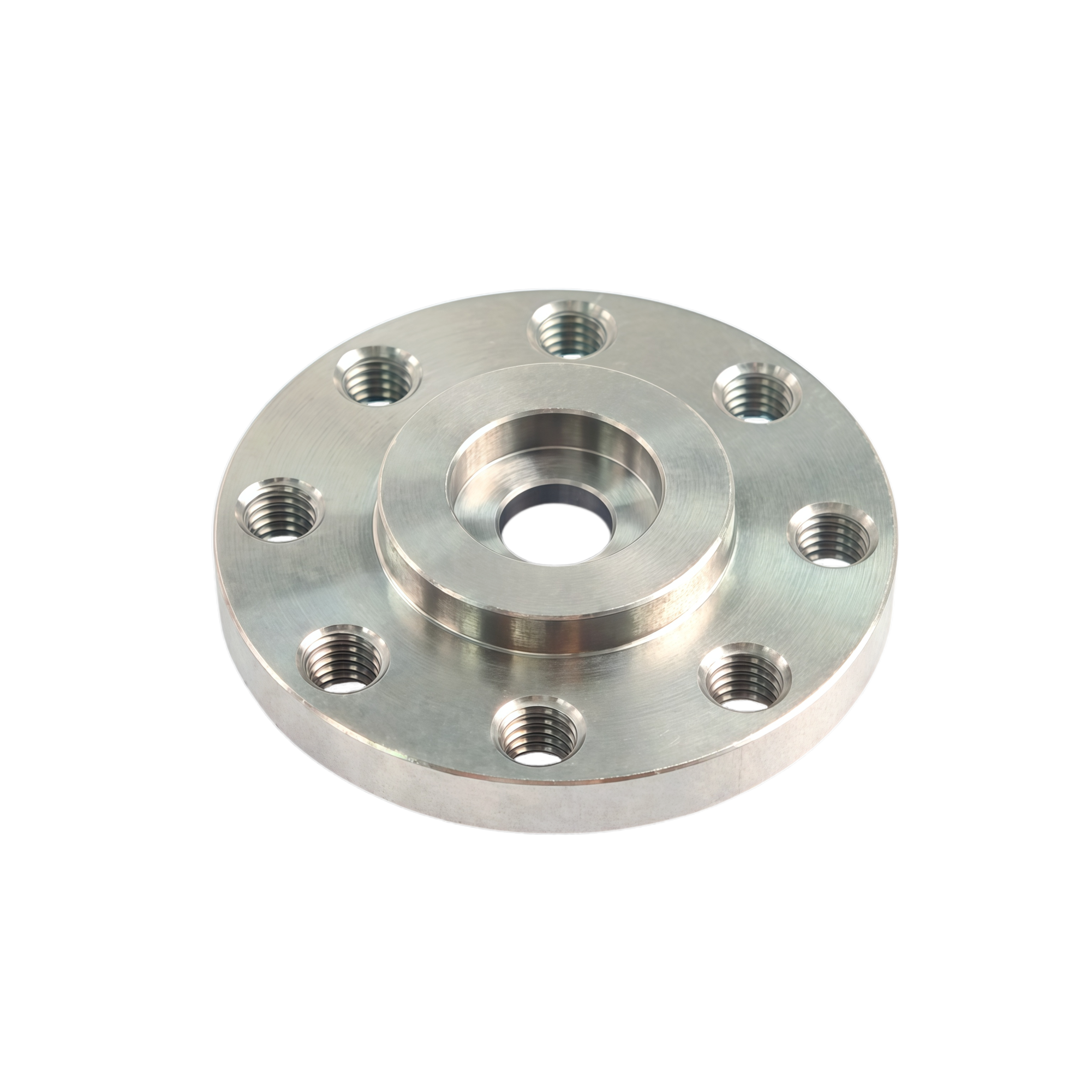

8-hole secondary horn 8-Hole Secondary Horn PDF ｜ STEP ｜ DWGPDFSTEPDWG

Tip

  • Robot brackets and gimbal brackets are open-source 3D-print parts and are not sold.

Robot Brackets

Appearance Name Download

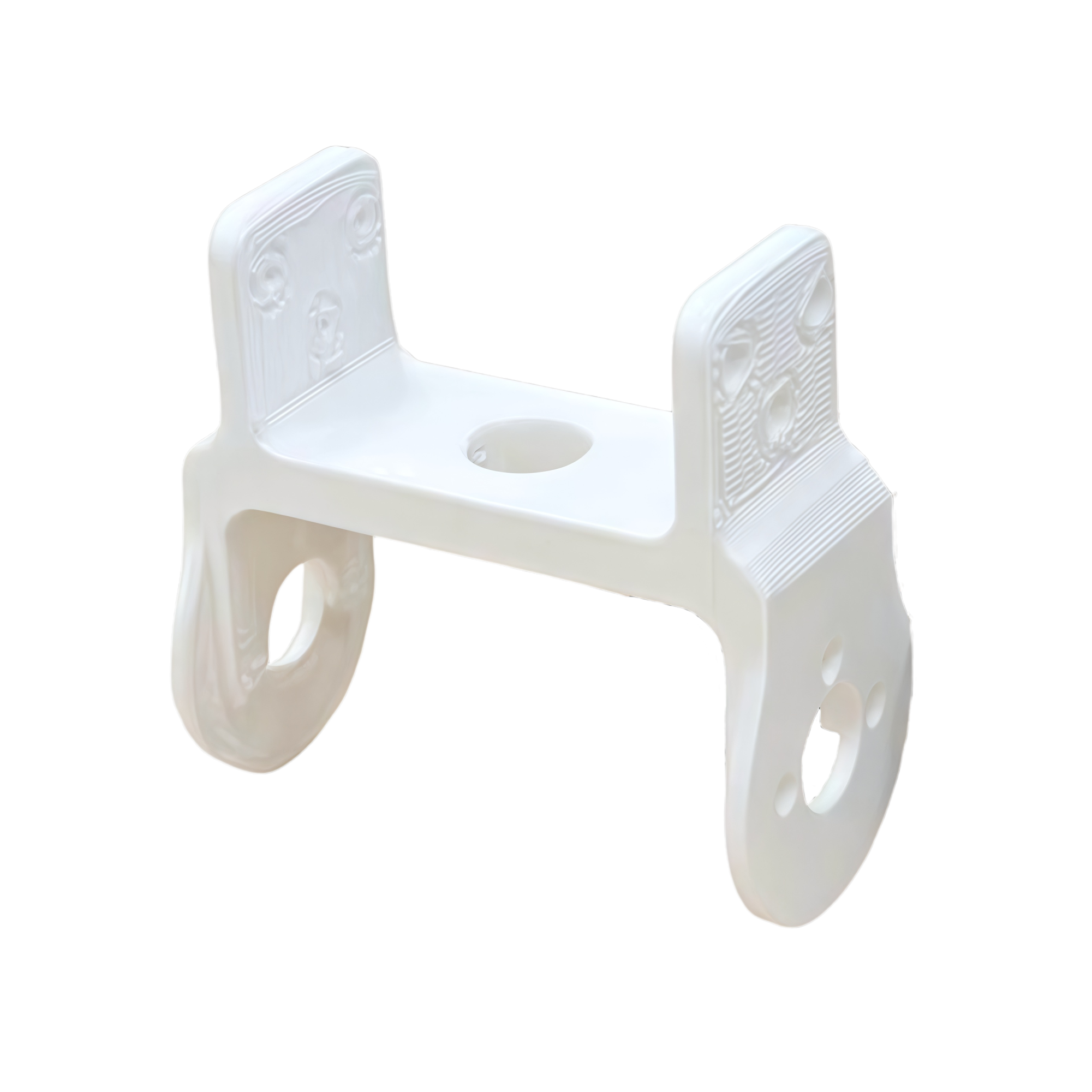

U-shaped connector U-Shaped Connector PDF ｜ STEP ｜ DWGPDFSTEPDWG

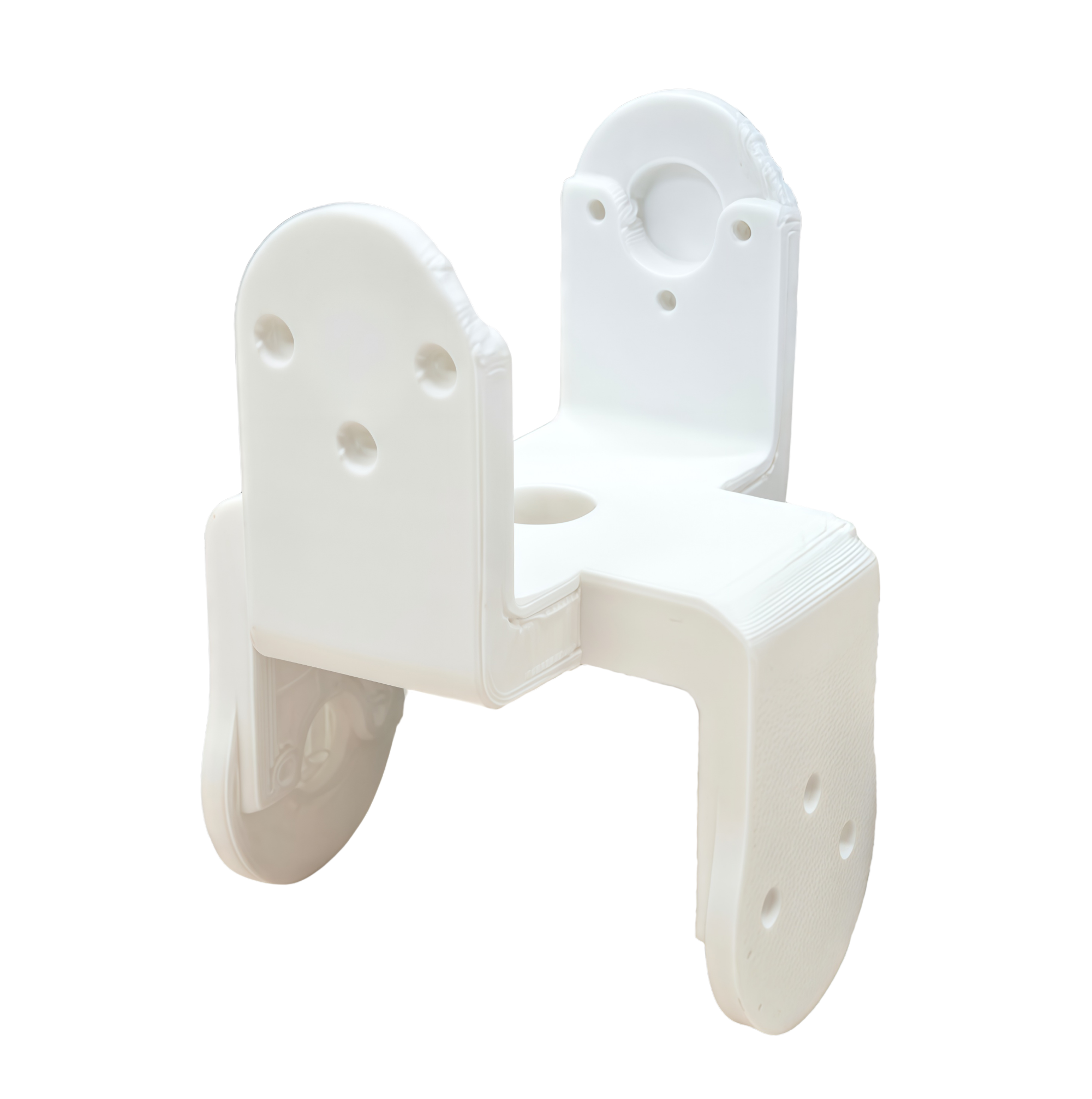

Cross connector Cross Connector PDF ｜ STEP ｜ DWGPDFSTEPDWG

Gimbal Brackets

Appearance Name Download

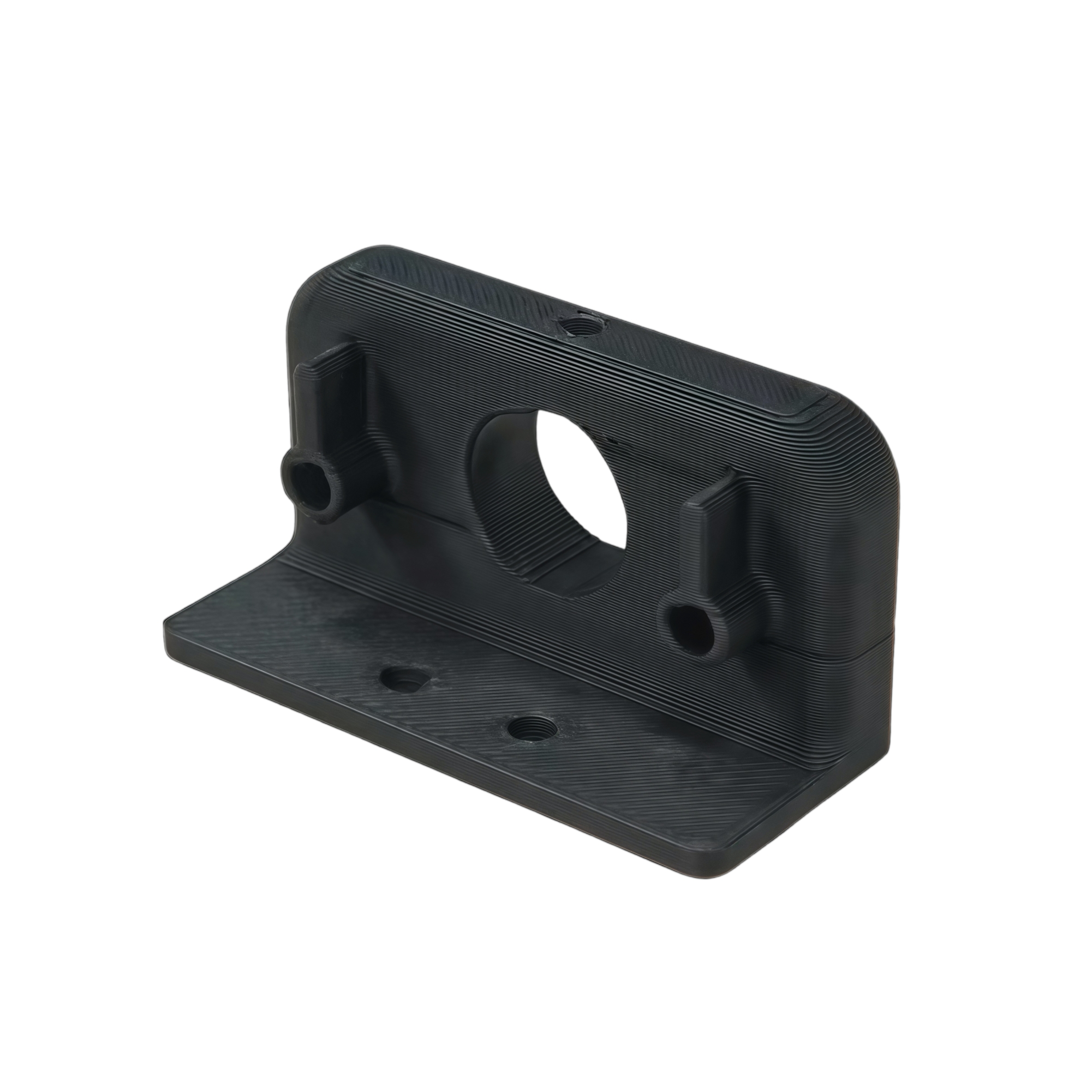

OpenMV and laser pointer combo bracket OpenMV and Laser Pointer Combo Bracket PDF ｜ STEP ｜ DWGPDFSTEPDWG
